Name: MSI B650 GAMING PLUS WIFI AM5
Brand: MSI
SKU: 13-144-628
Price: 112.49 USD
Availability: InStock

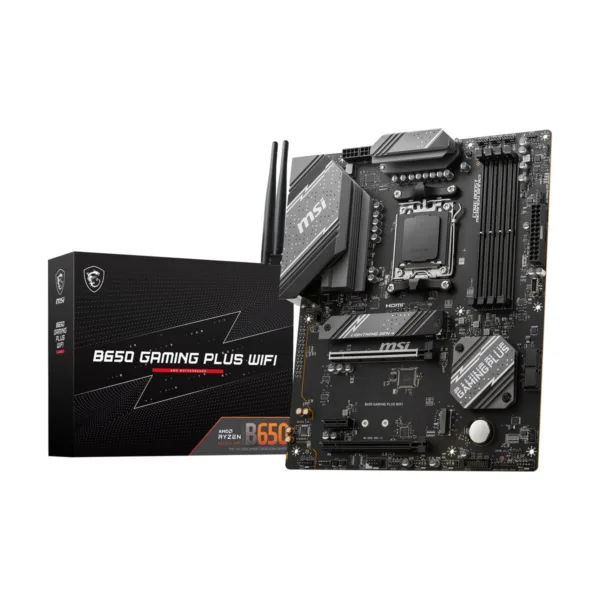

MSI B650 GAMING PLUS WIFI AM5

Save 25%

Sale ends Dec 23

Supports AMD Ryzen 7000 Series and Ryzen 9000 Series processors Bios update MAY required when used with 9000 Series processors

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.

30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.

Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.

Secure checkout Visa, Mastercard and American Express and Discover.

SKU: 13-144-628 Category: Motherboards Brand: MSI

Weight	3.5 lbs
Dimensions	13.75 × 6.6 × 2.6 in
Brand	MSI
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset	AMD B650
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6000+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Performance Profile	AMD EXPO
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports AMD EXPO
PCI Express 4.0 x16	2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	1x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Audio Chipset	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Audio Channels	7.1 Channels
LAN Chipset	Realtek 8125BG 2.5G LAN
Max LAN Speed	2.5Gbps
Wireless LAN	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in
Bluetooth	Supports Bluetooth 5.3 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

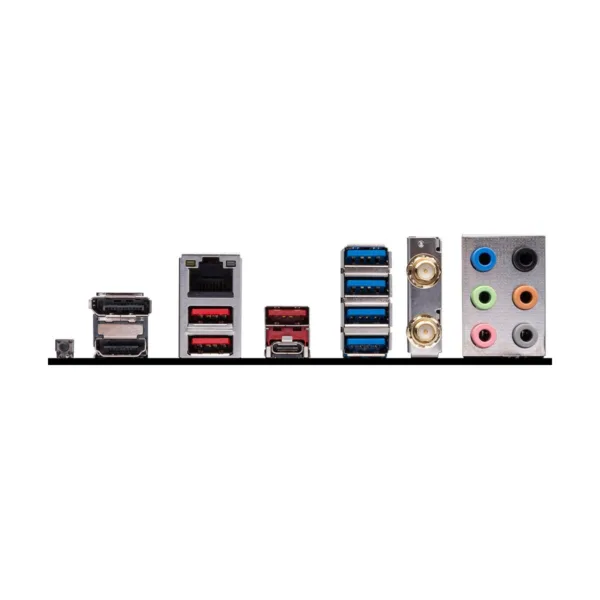

Back I/O Ports	1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2×2 Type-C / 2 x Antenna Bracket / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 6 x Audio Jacks
Onboard USB	4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Other Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED co
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Windows 11	Supported
MPN	B650 GAMING PLUS WIFI
UPC	824142324080
