| Weight | 5 lbs |
|---|---|
| Dimensions | 13.5 × 10.63 × 2.75 in |
| Brand | MSI |
| Series | ARSENAL GAMING |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| South Bridge | Intel Z890 |
| Onboard Video Chipset | Integrated Graphics (CPU dependent) |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 9200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express x16 | 3 x PCI Express x16 |
| PCI Express x4 | 2 x PCI Express x4 |
| PCI Slots | 3 x PCI Slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4 & SATA) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220P |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel Killer E5000 |
| Max LAN Speed | 5Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac / ax / be |
| Bluetooth | Yes |

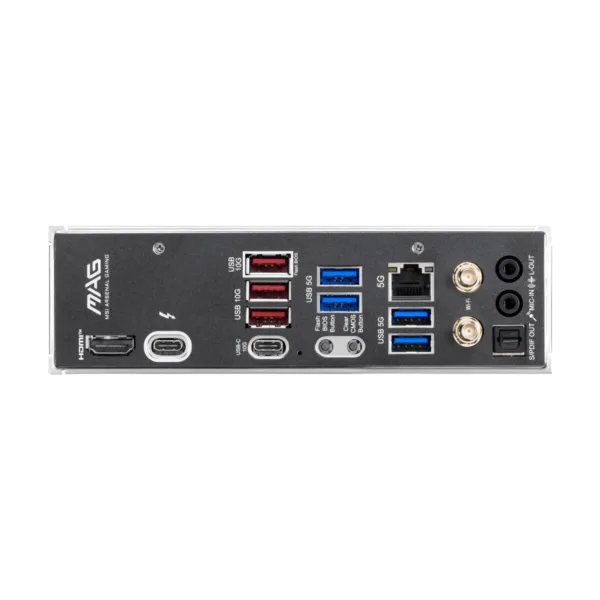

| Back I/O Ports | 4 x USB 5Gbps Type A, 3 x USB 10Gbps Type A, 1 x USB 10Gbps Type C, 1 x Thunderbolt4 port, 1 x HDMI |
| Video Ports | HDMI + Display Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| Thunderbolt Ports | 1 x Thunderbolt Port |
| USB 3.1 | 7 x USB 3.1 |
| USB 3.0 | 7 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB Type-C | 1 x USB 10Gbps Type-C port, 1 x USB 20Gbps Type-C port |
| S/PDIF Out | Yes |
| Onboard USB | 4 x USB 2.0 + 2 x USB 3.2 + 1 x USB Type-C® header, with USB 3.2 Gen 2×2 |
| Windows 11 | Supported |
| Form Factor | ATX |
| LED Lighting | None RGB |
| Dimensions (W x L) | 243.84mm x 304.8mm |
| Power Pin | 24 Pin |
| MPN | MAG Z890 TOMAHAWK WIFI II |
| UPC | 824142456347 |

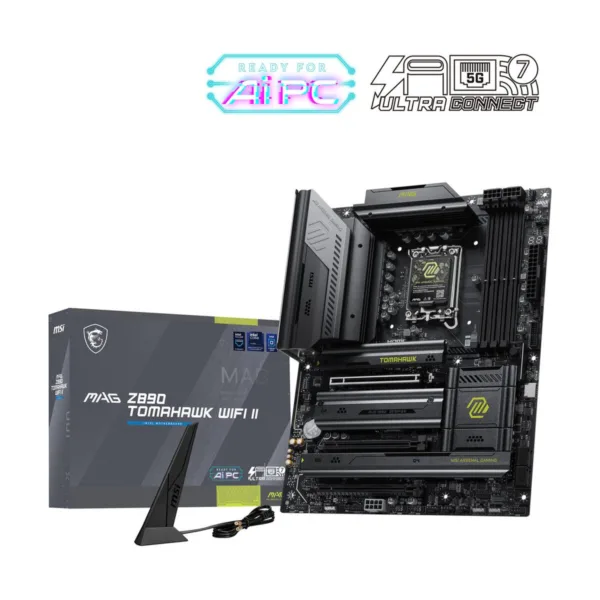

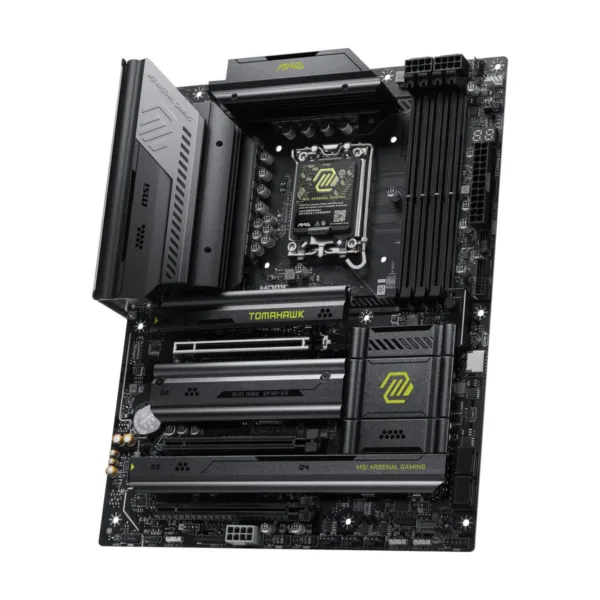

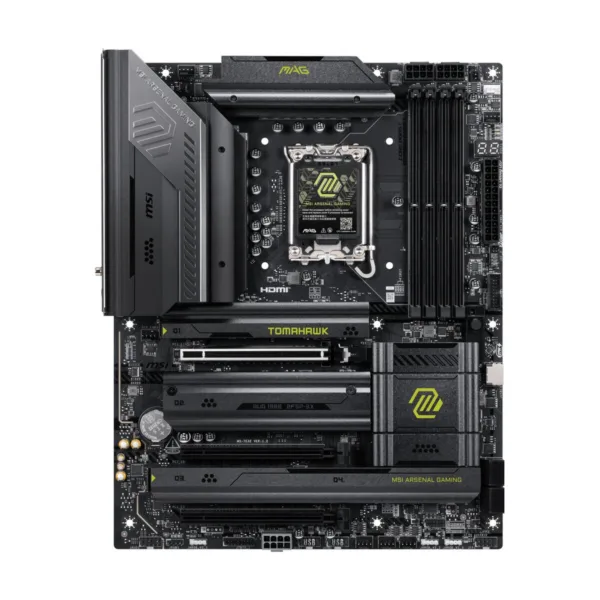

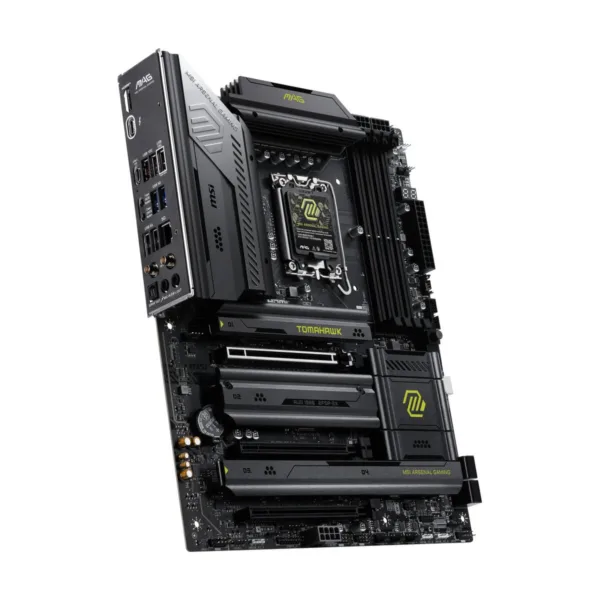

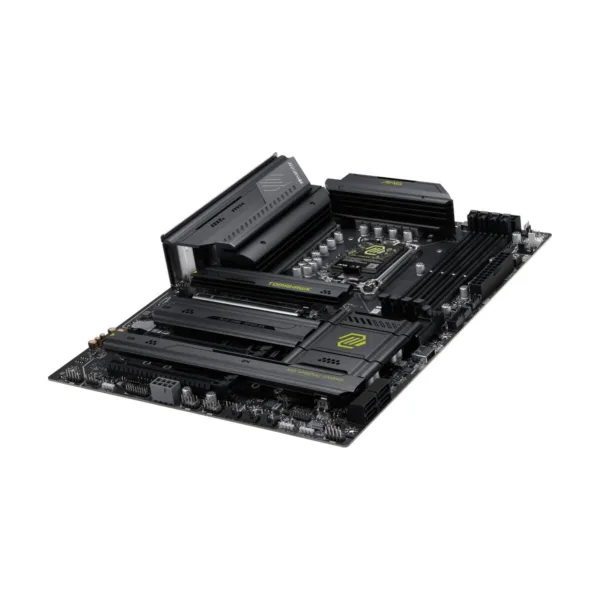

MSI MAG Z890 TOMAHAWK WIFI II LGA 1851 ATX Motherboard, DDR5, M.2 Gen5, Thunderbolt 4, Wi-Fi 7
Original price was: $229.99.$183.99Current price is: $183.99.
Save 20%Sale ends Dec 23Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
