| Weight | 7.65 lbs |
|---|---|
| Dimensions | 14 × 11.5 × 3.5 in |
| Brand | MSI |
| Series | MEG |
| CPU Socket Type | AM5 |
| Chipset | AMD X870E |
| South Bridge | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| Other Slots | 1 x M.2 (Key-E) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) support |
| SATA RAID | 0/1/10 |
| Audio Chipset | Realtek ALC4082 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Marvell AQC113CS, Realtek 8126 |
| Second LAN Chipset | Realtek 8126 |
| Max LAN Speed | 10Gbps + 5Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac / ax / be |
| Bluetooth | Yes |
| Back I/O Ports | 9 x USB 10Gbps Type-A, 2 x USB 10Gbps Type-C, 2 x USB 40Gbps Type-C, 1 x HDMI, 1 x 10G LAN, 1 x 5G LAN, 1 x Optical S/PDIF-Out |
| Video Ports | HDMI + 2 x Display Port |
| S-Video | No |
| HDMI | 1 x HDMI |
| RJ45 | 2 x RJ45 |
| DisplayPort | 2 x DisplayPort |
| USB 3.1 | 11 x USB 3.1 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB Type-C | 2 x USB Type-C® port, with USB 40Gbps support; 2 x USB Type-C® port, with USB 10Gbps support; 1 x USB Type-C® port, with USB 20Gbps support |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 3.2 + 4 x USB 2.0 + 1 x USB Type-C header, with USB 3.2 Gen 2×2 |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 243.84mm x 304.8mm |
| Power Pin | 24 Pin |
| Windows 11 | Supported |
| MPN | MEG X870E ACE MAX |
| UPC | 824142451182 |

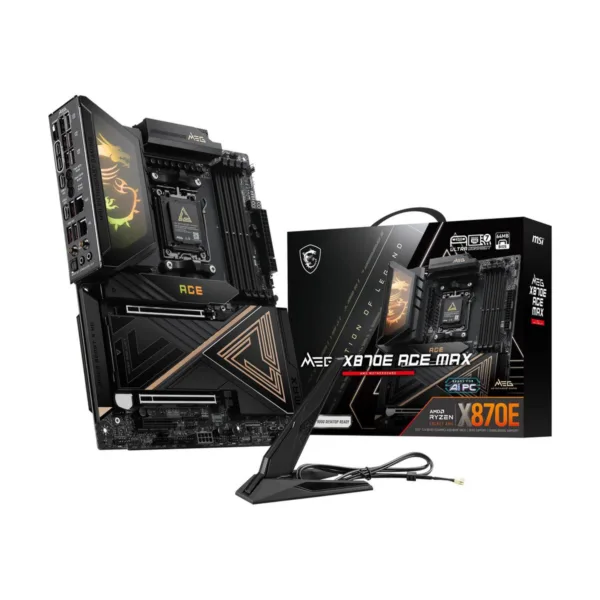

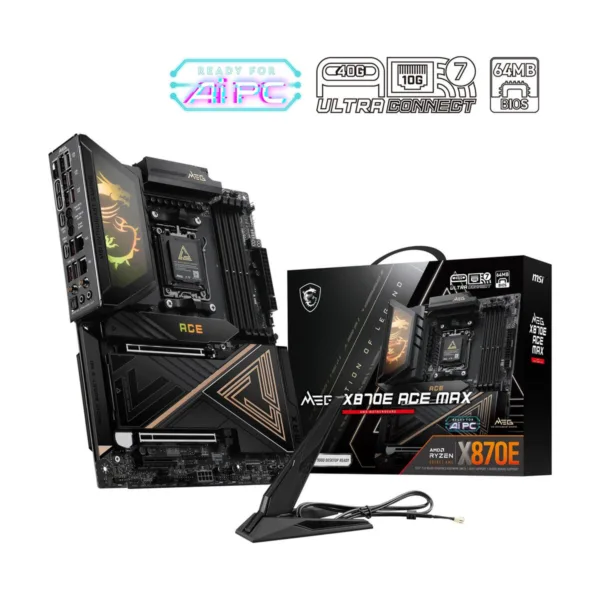

MSI MEG X870E ACE MAX AM5 ATX Motherboard, DDR5, M.2 & PCIe 5.0, USB4, Wi-Fi 7, 10G LAN
Original price was: $880.00.$704.00Current price is: $704.00.
Save 20%Sale ends Dec 23OC Engine: With the clock generator, the OC Engine technology releases the maximum power of CPU.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
