| Weight | 14.2 lbs |
|---|---|
| Dimensions | 15.15 × 14.25 × 5.25 in |
| Brand | MSI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ M |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 S |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) support |
| SATA RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4082+ESS ES9280AQ |
| Audio Channels | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| LAN Chipset | AQC113+ Realtek 8125BG |
| Max LAN Speed | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
| Wireless LAN | Wi-Fi 802.11 be |

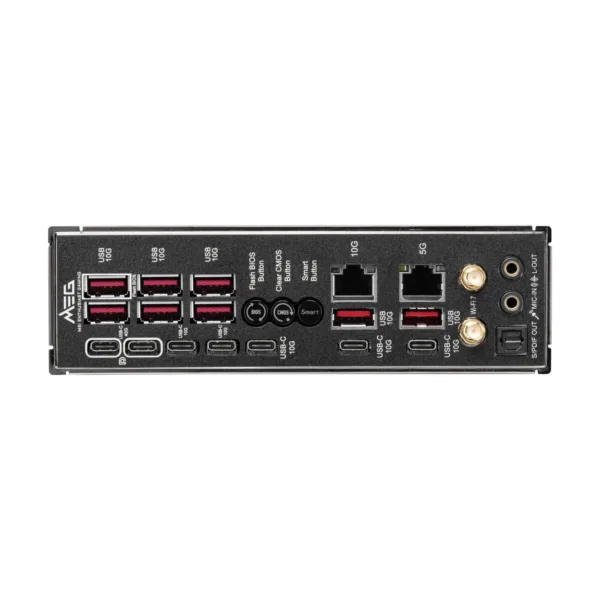

| Back I/O Ports | 1 x USB 3.2 Gen 2×2 Type-C / 4 x USB 2.0/1.1 / 4 x USB 3.0 |
| Onboard 1394 | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Ther |
| Form Factor | Extended ATX |
| Windows 11 | Supported |
| Features | 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch |
| MPN | MEG X870E GODLIKE |
| UPC | 824142388747 |

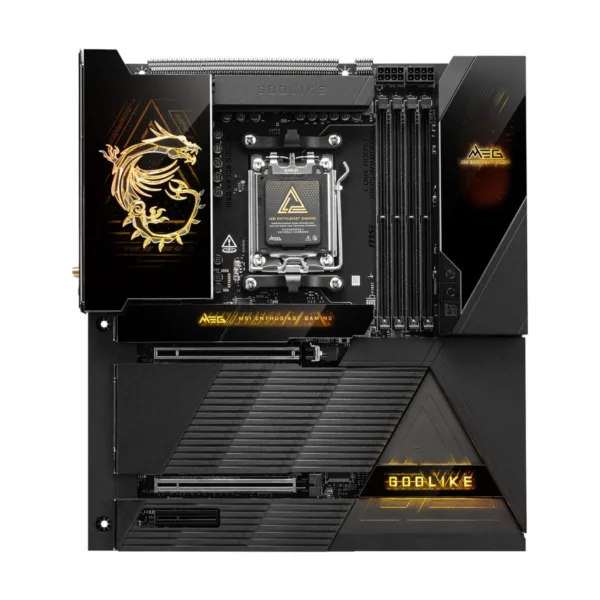

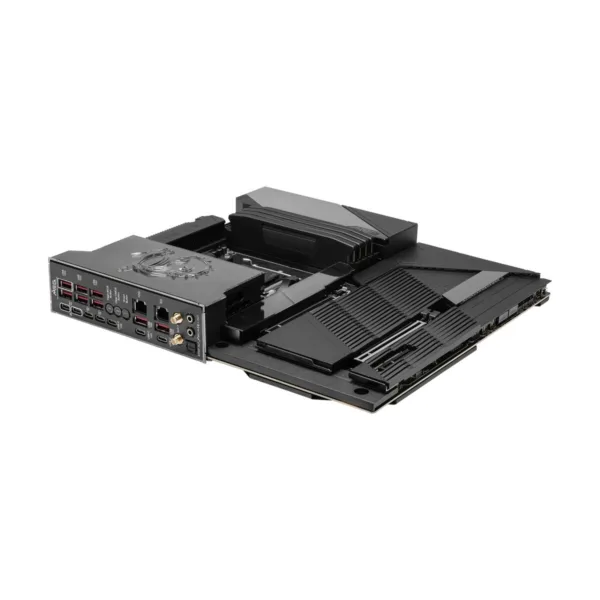

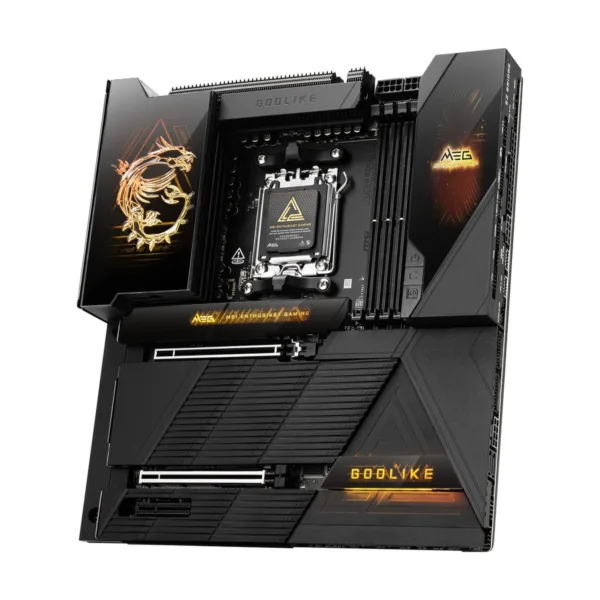

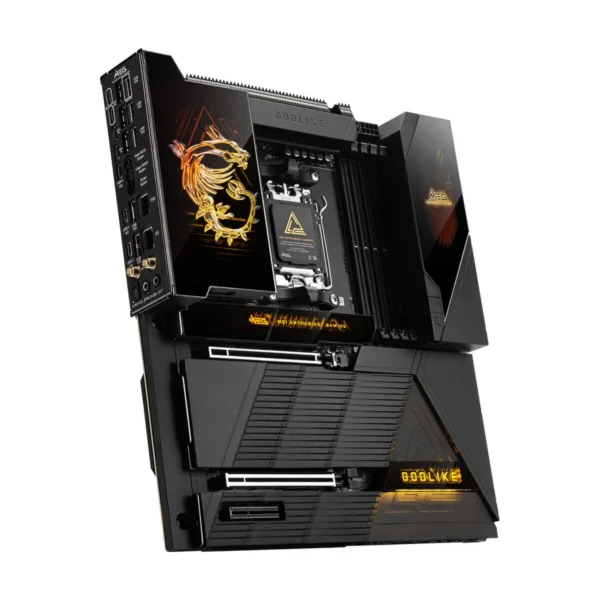

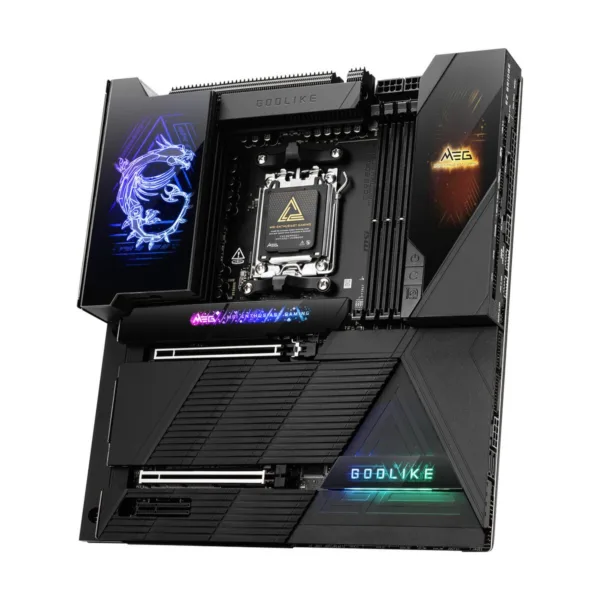

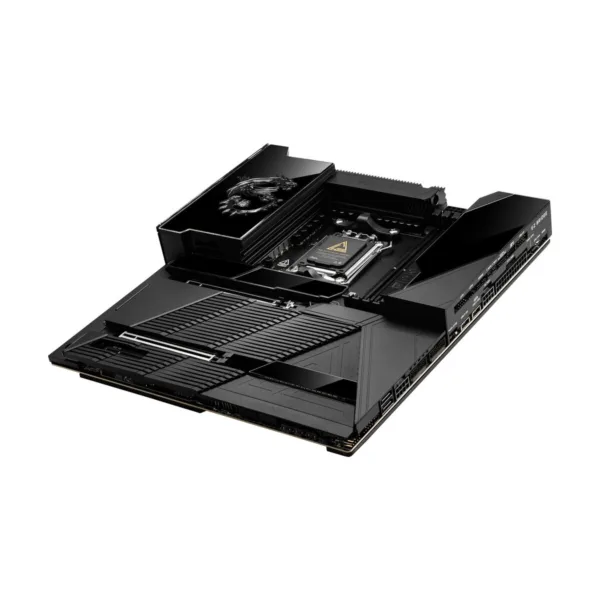

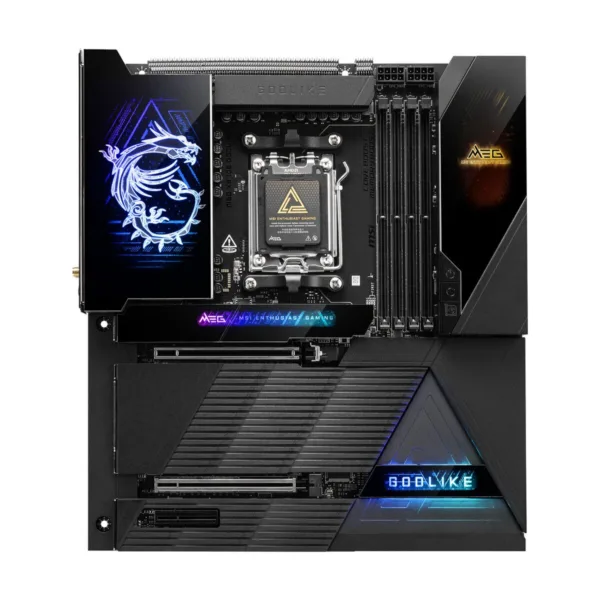

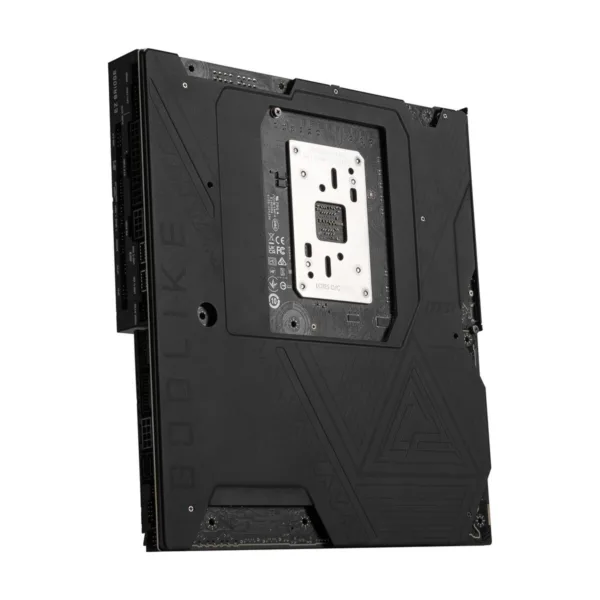

MSI MEG X870E GODLIKE AM5 E-ATX Motherboard, DDR5, M.2 & PCIe 5.0, USB4, Wi-Fi 7, 10G LAN
Original price was: $1,099.99.$879.99Current price is: $879.99.
Save 20%Sale ends Dec 23Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience. EZ Link: By consolidating front panel, fan, and ARGB header…
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
Beyond the Norm, Meet GODLIKE
Experience the pinnacle of innovation with the MEG X870E GODLIKE motherboard, This E-ATX motherboard features a dark black heatsink with embedded crystal-cut tempered glass, a stereoscopic dragon and the groundbreaking Dynamic Dashboard III. Constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000/8000/7000 series processors, featuring 24 phases CPU power, PCIe 5.0, 10G LAN, USB4, Wi-Fi 7, premium Frozr and EZ DIY design, setting a new standard for AMD X870E motherboards.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MEG X870E GODLIKE motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: E-ATX Socket Type: AM5 Chipset: AMD X870E
Dynamic Dashboard III & EZ Link
Dynamic Dashboard III: A built-in 3.99-inch full-color dynamic LCD panel offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience. Besides serving as a display panel, the Dynamic Dashboard functions as a versatile bridge, providing onboard boot, reset, EZ PCIe Release Buttons, and EZ Digi-Debug LED for easier system management and troubleshooting. EZ Link: The GODLIKE-exclusive EZ Li
Ultra Power+ – 24 Duet Rail Power System with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MEG X870E GODLIKE is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 24 Duet Rail Power System with 110A SPS 2-Phase SOC Power 1-Phase MISC Power
Frozr Design
Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, Double-sided M.2 Shield Frozr, and a 10-layer server-grade PCB with 2oz of thickened copper for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in
M.2 XPANDER-Z SLIDER GEN5
The MEG X870E GODLIKE comes with the all-new M.2 XPANDER-Z SLIDER GEN5 accessory card, providing two extra Gen5 x4 128Gbps M.2 slots for more high-speed storage expansion options. EZ Slide Design: Make storage upgrade effortless by letting you access your M.2 SSDs from the rear I/O without opening your case. One Slot Design: No conflict with bulky, thick graphics cards, while ensuring improved airflow for better cooling efficiency. 70 mm Double-ball Bearing Fan: Stronger airflow, extended gaming
Gen5 M.2 Connector
The MEG X870E GODLIKE motherboard features MSI's M.2 slots: 2 x Gen5 x4 128Gbps slot (with double-sided M.2 Shield Frozr) 3 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor. 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release) 1 x PCIe 4.0/3.0 x4 slot * Supports x16/x0/x4, x8/x8/x4 ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Ultra Connect
10G Super LAN: Premium Marvell 10Gbps LAN & Realtek 5Gbps LAN deliver an utmost network gaming experience. Wi-Fi 7: Features the full-speed Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@120Hz display support*. HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output. * Available only on processors featuring integrated graphics. Graphics specification
