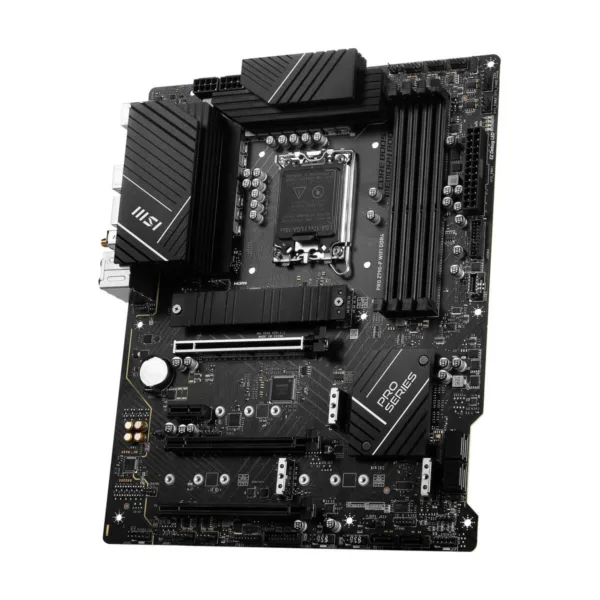

For creative professionals looking forward to increasing productivity and improving efficiency, the MSI PRO Z790-P WIFI DDR4 offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports Intel Core 12th & 13th Gen Processors
The PRO Z790-P WIFI DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel Z790
14 Duet Rail Power System with 55A DrMOS
With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-P WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding settings: 1. Digital PWM IC 2. 14 Duet Rail Power System with 55A DrMOS 3. 1-Phase GT Power 4. 1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an Extended Heatsink design and 7W/mK MOSFET thermal pads for improved thermal dissipation. PCB Cooling: A 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
Fortified PCI-e 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor**) 1 x PCI-e 4.0/3.0 x16 slot* * Supports x4 ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Lightning Gen4 M.2 Connectors
The PRO Z790-P WIFI DDR4 motherboard features MSI's latest M.2 slots: 4 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr: MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
4 x DDR4 Dual Channel (5333 MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. * 1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Maxoverclocking frequency: – 1DPC 1R Max speed up to 5333+ MHz – 1DPC 2R Max speed up to 4800+ MHz – 2DPC 1R Max speed up to 4400+ MHz – 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered m
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Memory Performance Profile
Intel XMP 2.0
PCI Express 5.0 x16
PCI_E1 slot (From CPU) – Supports up to PCIe 5.0 x16
PCI Express 4.0 x16
PCI_E3 slot (From Z790 chipset) – supports up to PCIe 4.0 x4
PCI Express 3.0 x16
PCI_E4 slot (From Z790 chipset) – supports up to PCIe 3.0 x1
PCI Express x1
1x PCIe x1 slot (From Z790 chipset) – PCI_E2 supports up to PCIe 3.0 x1
Serial ATA (SATA)
6x SATA 6Gb/s ports (From Z790 chipset)
M.2
1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) M2_1 slot (From CPU) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Support
SATA RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio Chipset
Realtek ALC897
Audio Channels
7.1 Channels
LAN Chipset
1x Intel 2.5Gbps LAN controller
Max LAN Speed
2.5Gbps
Wireless LAN
Intel Wi-Fi 6E – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps – Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 2
Bluetooth
Supports Bluetooth 5.2*, FIPS, FISMA * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

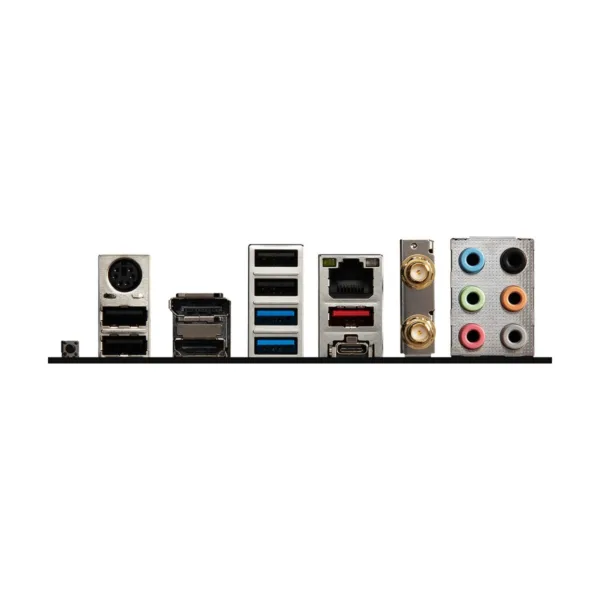

Back I/O Ports
1x Flash BIOS button 1x PS/2 port 4x USB 2.0 Type-A ports (From Z790 chipset) 1x DisplayPort 1x HDMI port 1x LAN (RJ45) jack 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset) 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From
Onboard USB
1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset) – Supports additional 4 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) – Supports additional 4 USB 2.0 ports
Other Connectors
Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors System Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning controller connector 1x TBT conn
Windows 11
Supported
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors
Features
MSI Center – LAN Manager – Mystic Light – Frozr AI Cooling – User Scenario – True Color – Live Update – Super Charger – Speed Up Cooling – M.2 Shield Frozr – Pump Fan – Smart Fan Control LED – Mystic Light Extension (ARGB GEN2/ RGB) – Mystic Light SYNC – EZ DEBUG LED – EZ LED Con
