Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard and American Express and Discover.
Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to http://www.asus.com for CPU support list.
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610
Onboard Video Chipset
Supported only by CPU with integrated graphic
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Memory Performance Profile
Intel XMP 2.0
PCI Express 4.0 x16
1 x PCI Express 4.0 x16 * Actual support may vary by CPU.
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
Intel H610 Chipset: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels
7.1 Channels
LAN Chipset
Realtek 1Gb Ethernet
Max LAN Speed
1Gbps

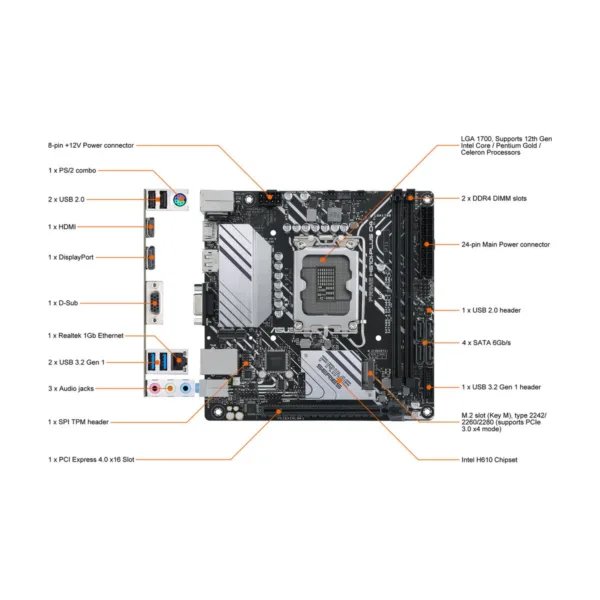

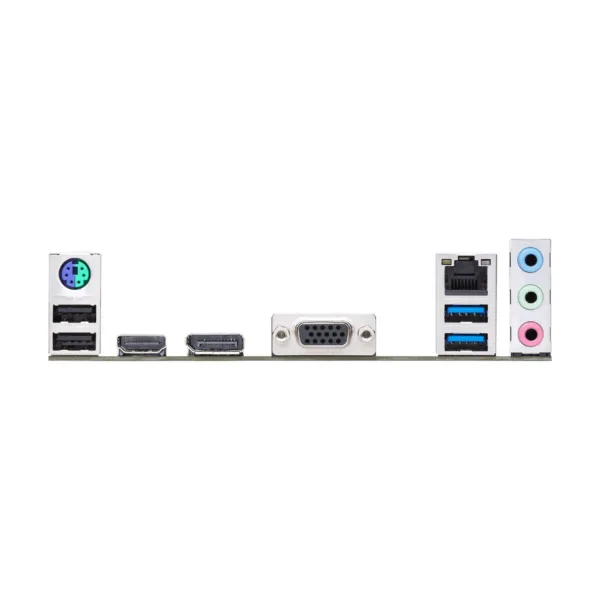

Back I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Onboard USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Other Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x S/PDIF Out header 1 x Speak
Windows 11
Supported
Form Factor
Mini ITX
LED Lighting
None RGB

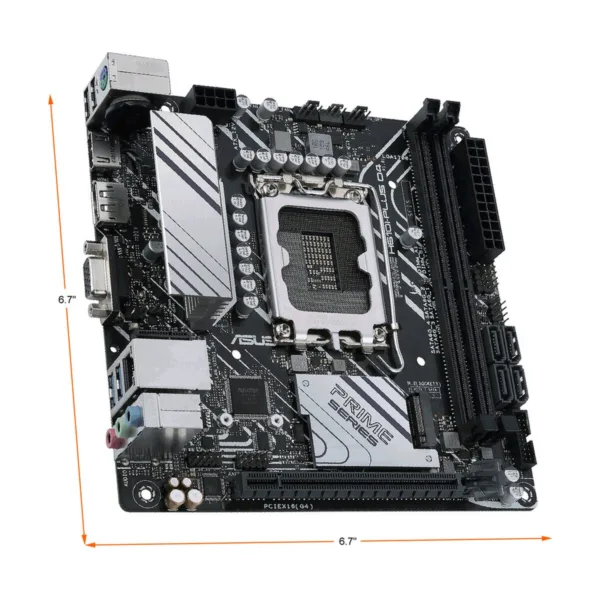

Dimensions (W x L)
6.7" x 6.7"
Power Pin
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Features
Special Features: ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Aluminum heatsin
Package Contents
Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Screw Package Installation Media 1 x Support DVD Documentation 1 x User guide
