| Weight | 4.28 lbs |
|---|---|
| Dimensions | 13.5 × 10.75 × 2.8 in |
| Brand | ASUS |
| Series | ROG |
| Part Number | 90MB1BP0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors* * Refer to http://www.asus.com for CPU support list. |
| Chipset | AMD B650 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)* * PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x4 | 3 x PCI Express x4 |
| PCI Express x1 | 2 x PCIe 4.0/3.0 x1 slots |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)** ** M.2_3 slot s |
| SATA RAID | AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Audio Chipset | Realtek ALC4080 |

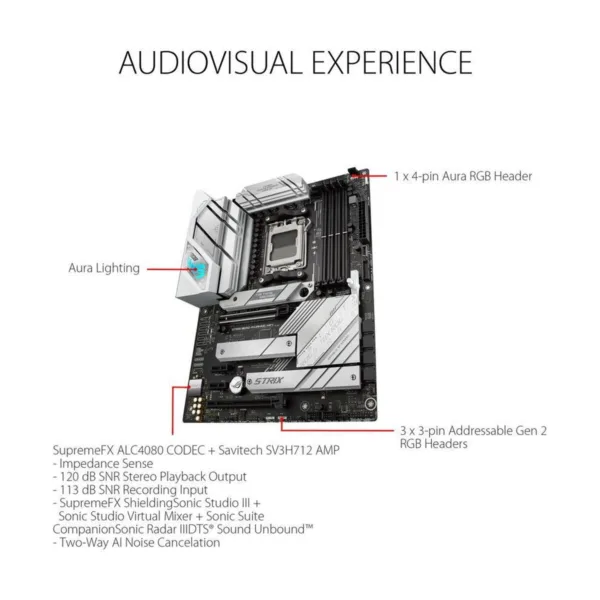

| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Su |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| Bluetooth | Bluetooth v5.2 |

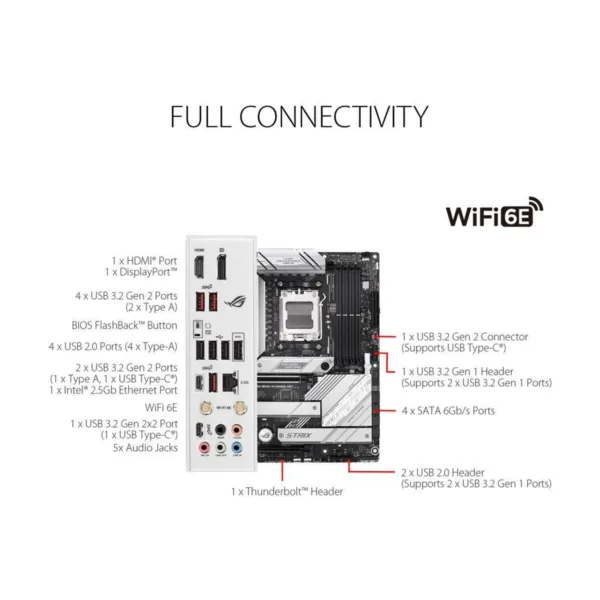

| Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| COM | 3 |
| Video Ports | 1 |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 10 x USB 3.0 |
| USB 1.1/2.0 | 9 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| S/PDIF In | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 header 1 x AURA RGB headers 1 x Clear CMOS header 1 |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| Software | windows_10 |
| Windows 11 | Supported |
| Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashB |

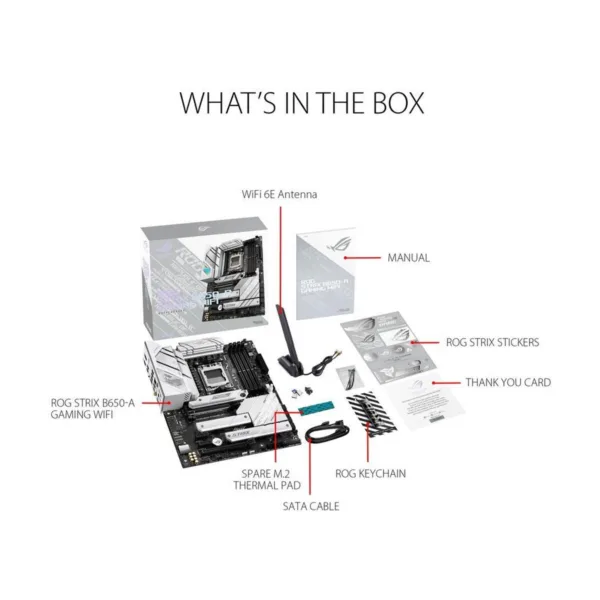

| Package Contents | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 Documentation 1 x |
| MPN | ROG STRIX B650-A GAMING WIFI |
| UPC | 195553917766 |

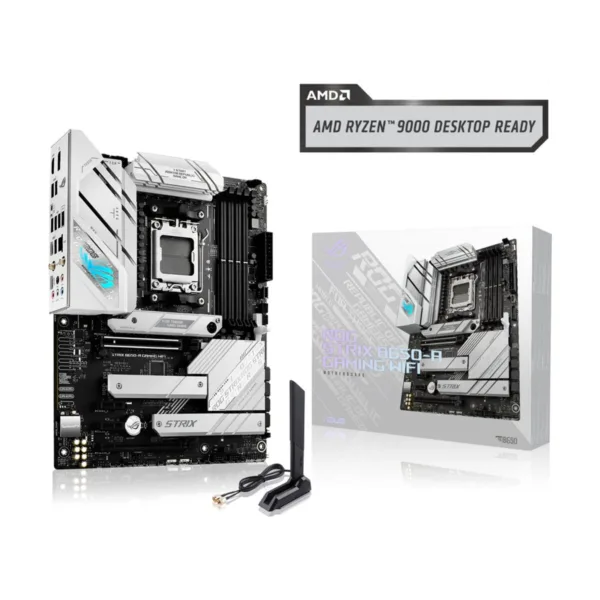

ASUS ROG Strix B650-A Gaming WiFi AM5 ATX Motherboard, DDR5, 3x M.2, PCIe 4.0, Wi-Fi 6E, 2.5G LAN
Original price was: $159.99.$119.99Current price is: $119.99.
Save 25%Sale ends Dec 23AM5 Socket: Ready for AMD Ryzen™ Desktop 9000*, 8000*, and 7000 Series Processors BIOS Update maybe required when used with AMD Ryzen™ Desktop 9000 and 8000 Series CPU Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
ROG STRIX B650-A GAMING WIFI

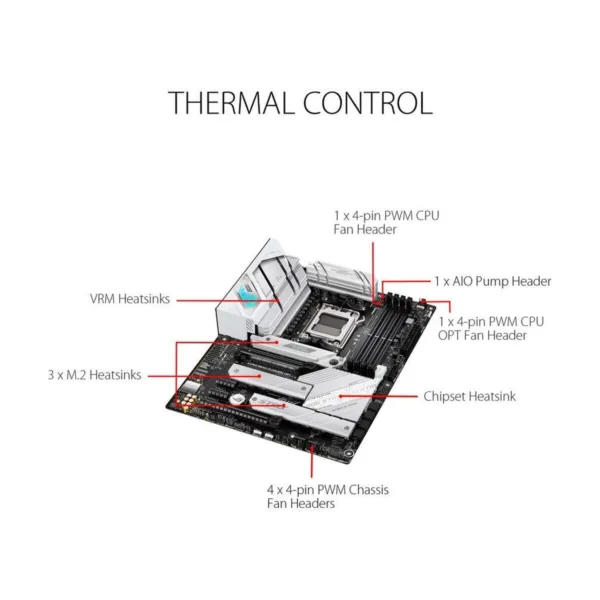

AMD B650 AM5 ATX motherboard with 12 + 2 power stages, DDR5, PCIe® 5.0 NVMe® SSD support, a PCIe 4.0 x16 SafeSlot with Q-Release, USB 3.2 Gen 2×2 Type-C® rear I/O port, USB 3.2 Gen 2 Type-C® front-panel connector, Wi-Fi 6E, and Aura Sync RGB lighting AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks

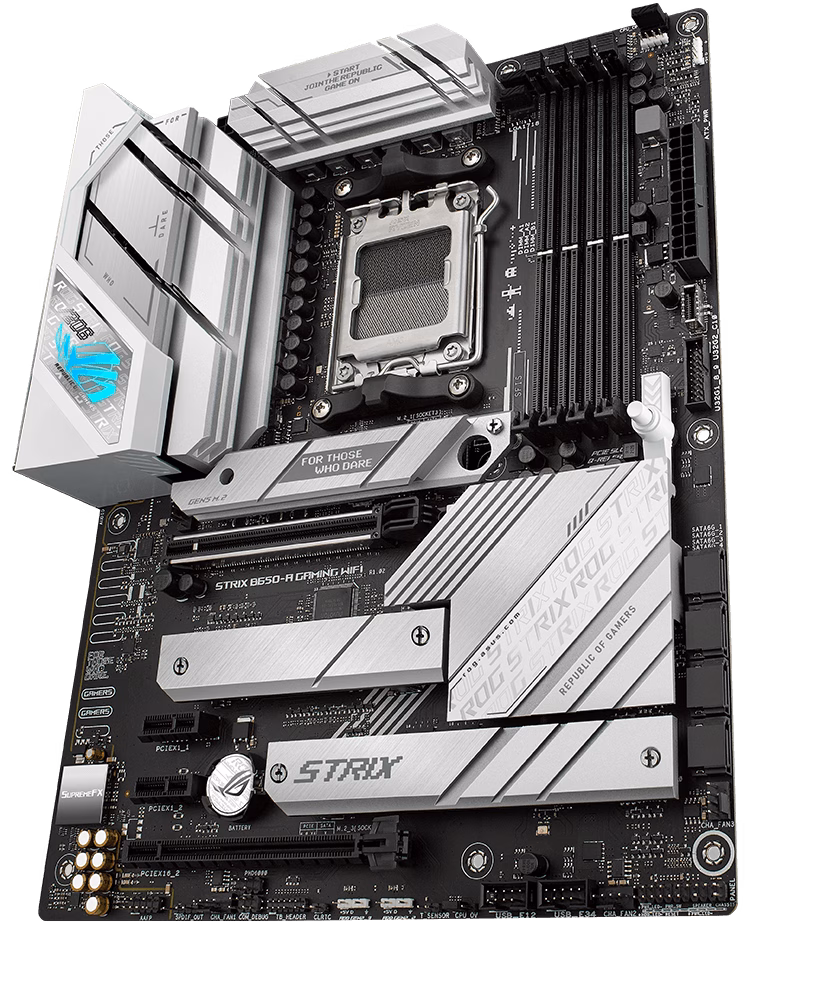

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest Wi-Fi 6E networking fleshes out the futuristic feature set.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
BIOS FLASHBACK™
is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

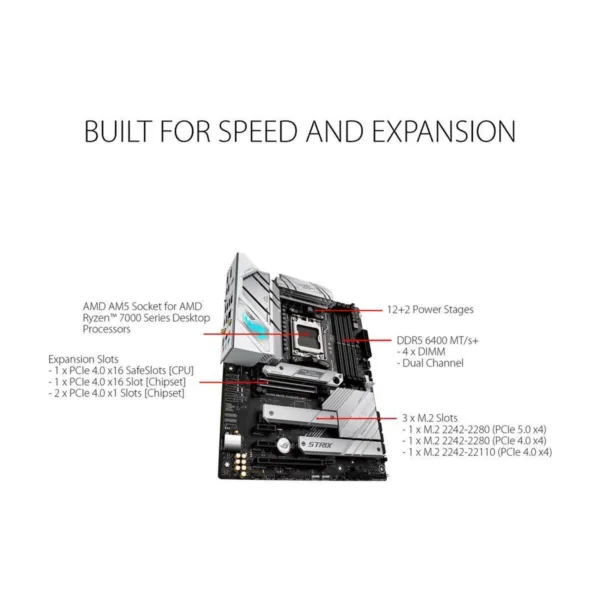

AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors Expansion Slots 1 x PCIe 4.0 x16 SafeSlot [CPU] 1 x PCIe 4.0 x16 Slot [Chipset] 2 x PCIe 4.0 x1 Slots [Chipset] 12 + 2 Power Stages
DDR5 6400+ (OC) 4 x DIMM Dual channel 3 x M.2 Slots 1 x M.2 2242-2280 (PCIe 5.0 x4) 1 x M.2 2242-22110 (PCIe 4.0 x4) 1 x M.2 2242-2280 (PCIe 4.0 x4)
