| Weight | 5.55 lbs |
|---|---|
| Dimensions | 14 × 11 × 3 in |
| Brand | ASUS |
| Part Number | 90MB1IF0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4400 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memor |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors** M.2_1 slot (Key M), type 2242/2260/2280 |
| SATA RAID | * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. |
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

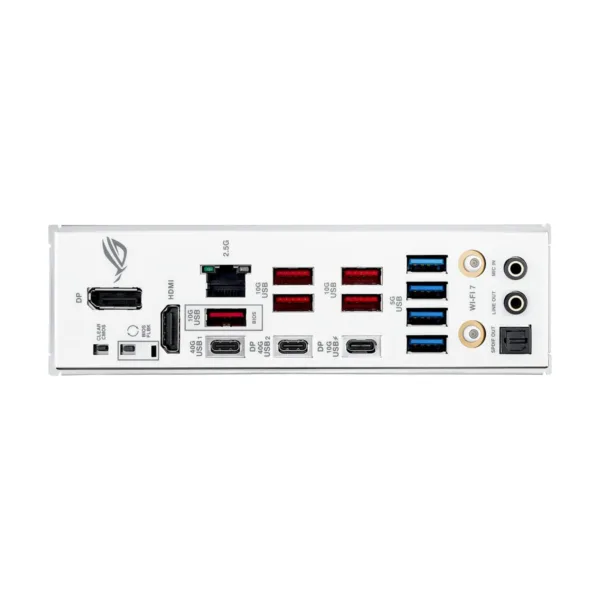

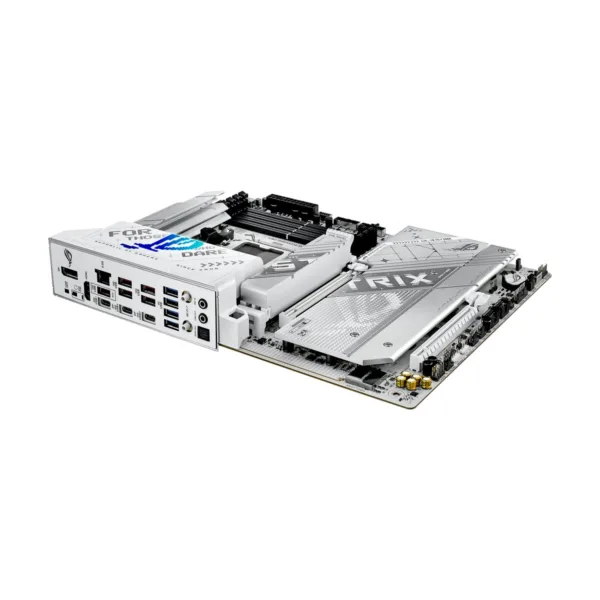

| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps port(s) (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 5Gbps port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PD |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Windows 11 | Supported |
| Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Sol |

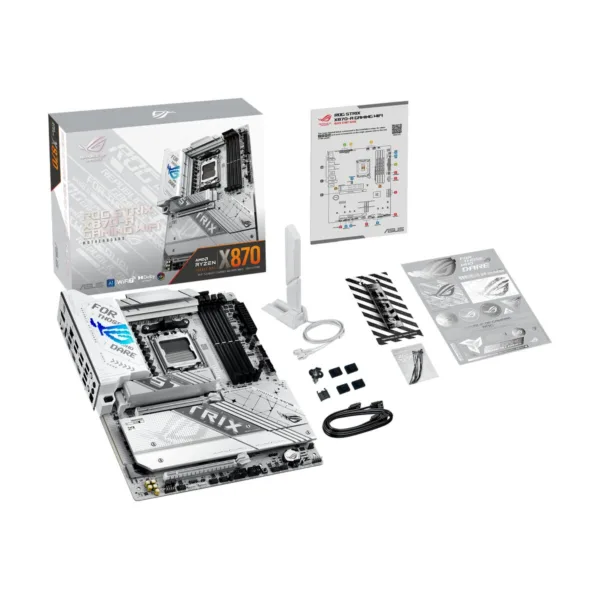

| Package Contents | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages Documentation 1 x Quick |
| MPN | ROG STRIX X870-A GAMING WIFI |
| UPC | 197105737853 |

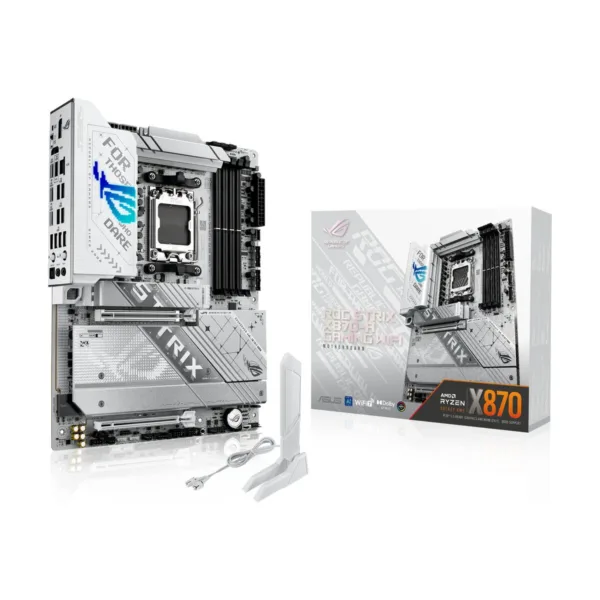

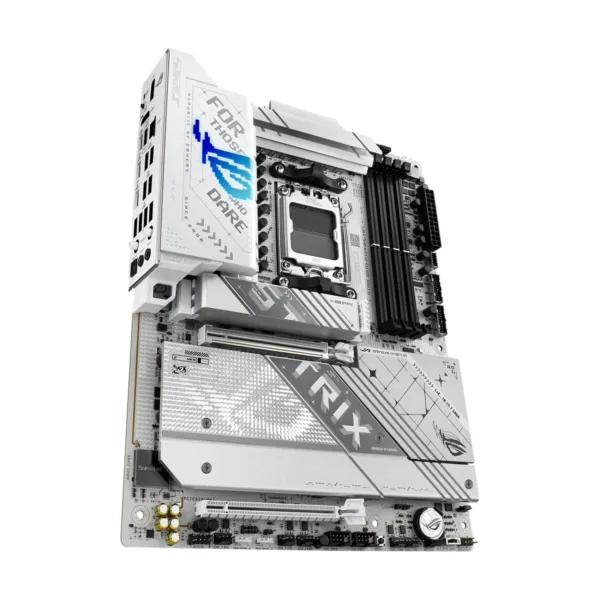

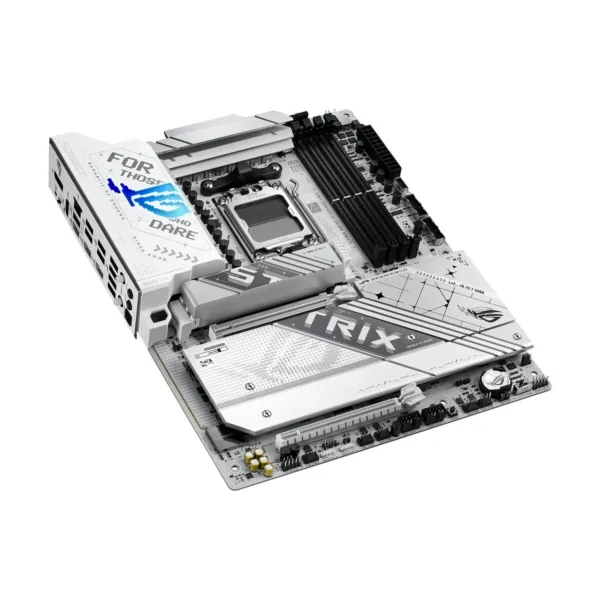

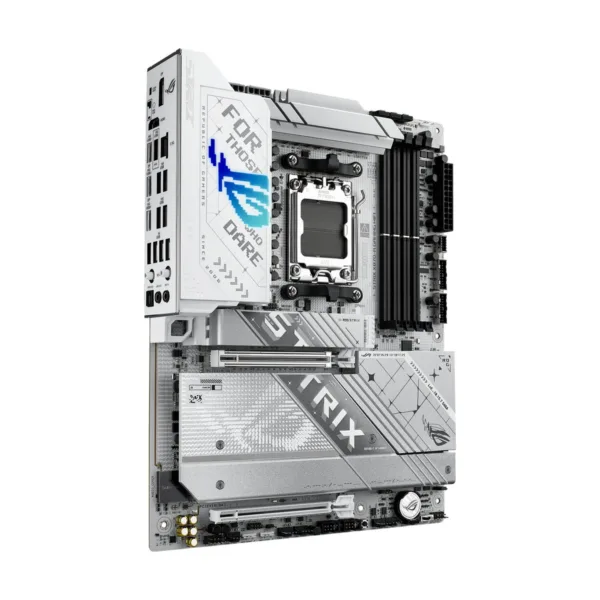

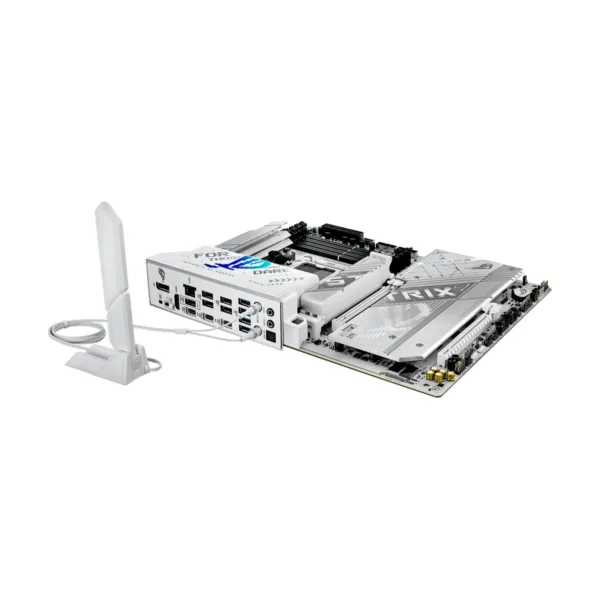

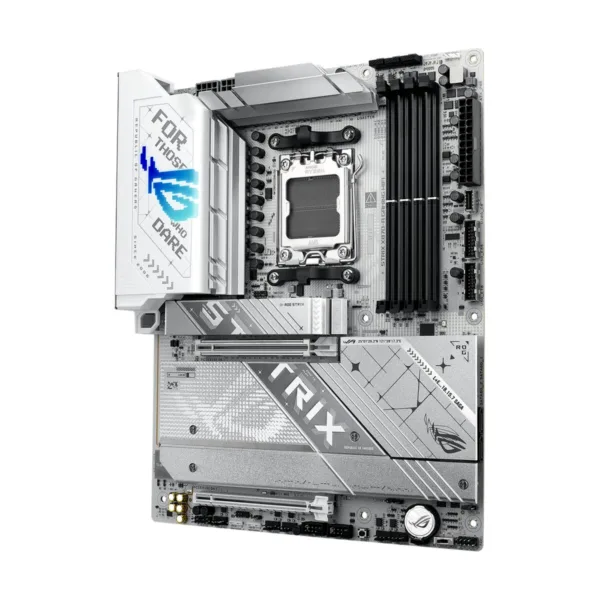

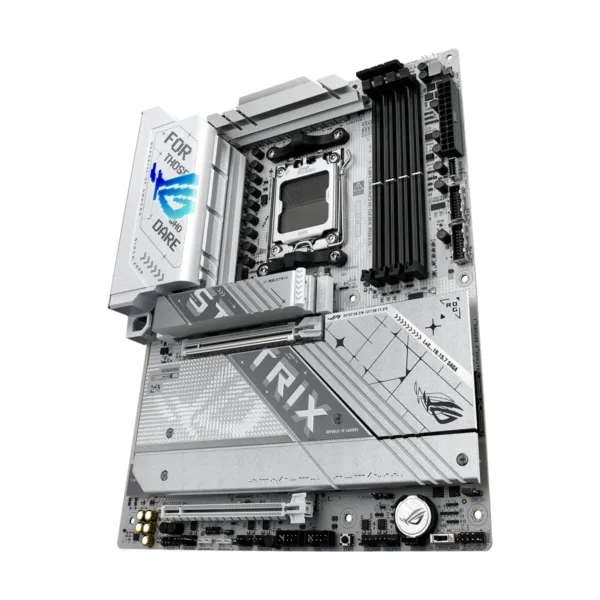

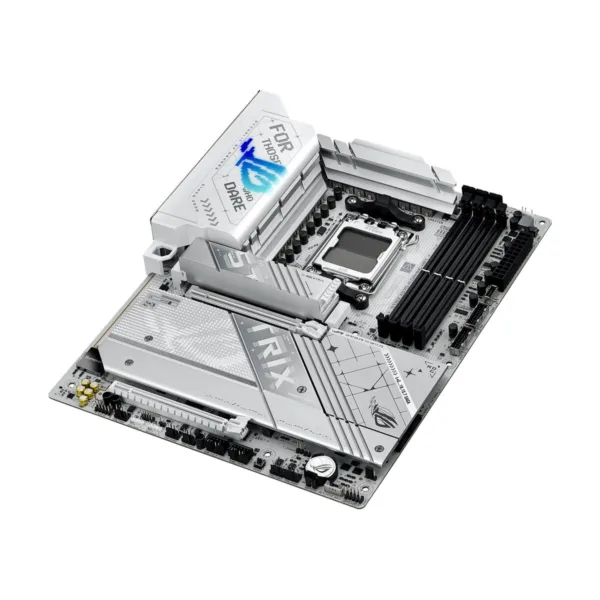

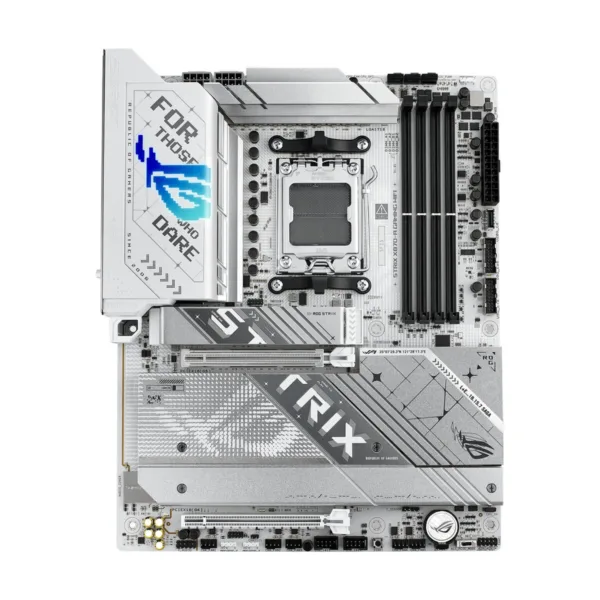

ASUS ROG STRIX X870-A GAMING WIFI AM5
Original price was: $299.99.$239.99Current price is: $239.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen™ 7000, 8000 and 9000 series desktop processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
Elevate your build with the ROG Strix X870-A Gaming Wi-Fi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4® ports, and Wi-Fi 7, it's the ultimate blend of style and performance.
ROBUST POWER SOLUTION
16 + 2 + 2 power solution rated for up to 90A per stage
PROCOOL II POWER CONNECTORS AMD SOCKET AM5 FOR AMD Ryzen™ 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORS EXPANSION SLOTS 1 x PCIe 5.0 x16 SafeSlot [CPU] 1 x PCIe 4.0 x16 Slots (x4) [Chipset]
16(90A)+ 2(90A)+ 2 POWER STAGES DDR5 8000+ MT/S (OC) 4 x DIMM Dual Channel 4 x M.2 SLOTS 1 x M.2 22110 (PCIe® 5.0 x4) 1 x M.2 2280 (PCIe® 5.0 x4) 2 x M.2 2280 (PCIe® 4.0 x4)
SUPREMEFX ALC4080 CODEC + SAVITECH SV3H712 AMP Impedance sense 120 dB SNR stereo playback output 110 dB SNR recording input SupremeFX shielding DOLBY ATMOS®
