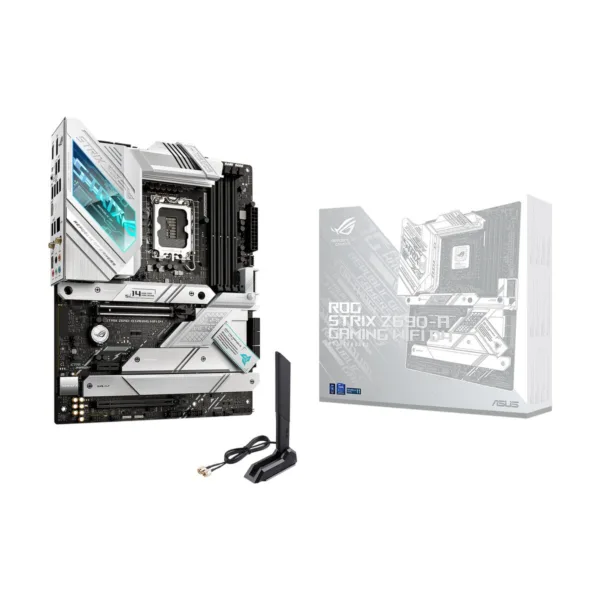

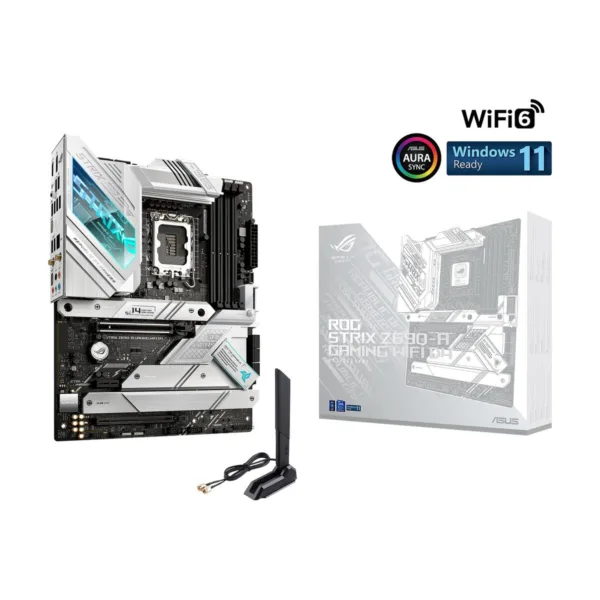

ASUS ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 Motherboard, DDR4, LGA 1700/1200 Cooler Holes

Overview

The ROG Strix Z690-A Gaming Wi-Fi D4 motherboard deploys robust power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors, all orchestrated by ASUS-exclusive intelligent controls that deliver advanced user experiences. Meanwhile, onboard Wi-Fi 6 and ample PCIe® 4.0 M.2 slots bring the speed that you need, and DIY-friendly innovations help simplify the PC building process. To top it all off, Strix Z690-A Gaming Wi-Fi D4 dazzles with customizable RGB lighting and a refined brushed-metal finish.

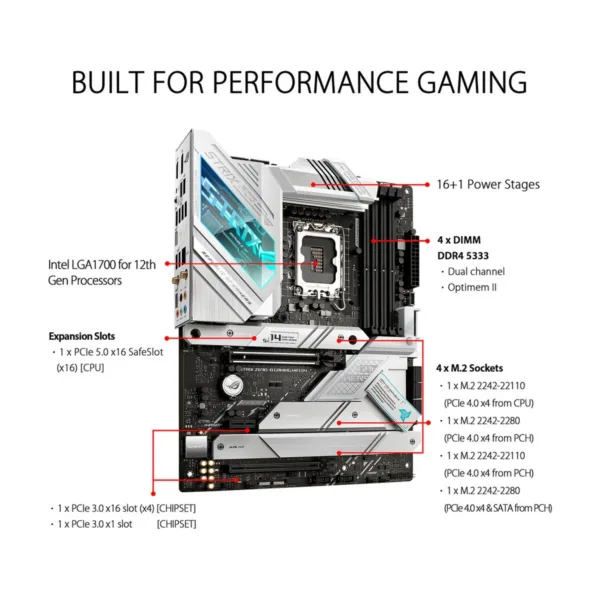

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Expansion Slots 1 x PCIe 5.0 x16 SafeSlot (x16) [CPU] 1 x PCIe 3.0 x16 slot (x4) [CHIPSET] 1 x PCIe 3.0 x1 slot [CHIPSET] 16+1 Power Stages

4 x DIMM DDR4 5333 (O.C.) + Dual channel Optimem III 4 x M.2 Slots 1 x M.2 2242-22110 (PCIe 4.0 x4 from CPU) 1 x M.2 2242-2280 (PCIe 4.0 x4 from PCH) 1 x M.2 2242-22110 (PCIe 4.0 x4 from PCH) 1 x M.2 2242-2280 (PCIe 4.0 x4 & SATA from PCH)

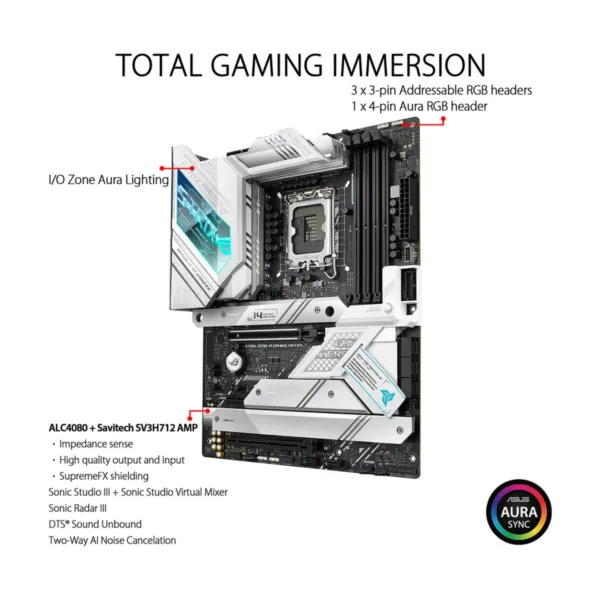

I/O Zone Aura Lighting ALC4080 + Savitech SV3H712 AMP Impedance sense High quality output and input SupremeFX shielding Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Two-Way AI Noise Cancelation

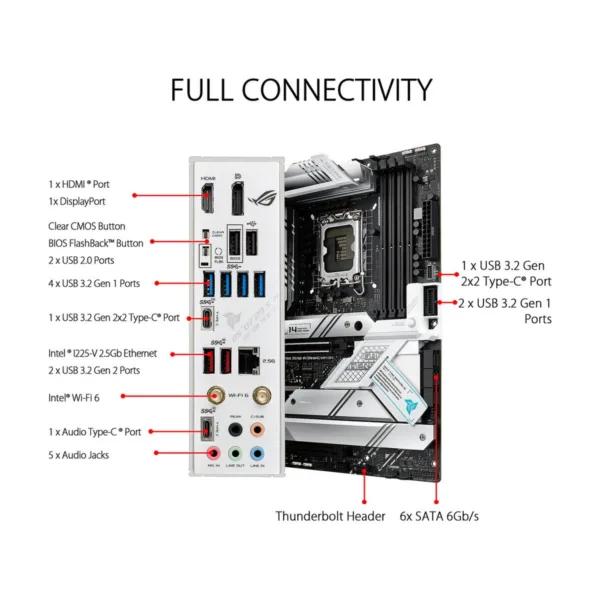

1 x HDMI® Port 1 x DisplayPort Clear CMOS Button BIOS FlashBack™ Button 2 x USB 2.0 Ports

4 x USB 3.2 Gen 1 Ports 1 x USB 3.2 Gen 2×2 Type-C® Port Intel® I225-V 2.5 Gb Ethernet 2 x USB 3.2 Gen 2 Ports Intel® Wi-Fi 6 1 x Type-C® Port

5 x Audio Jacks 1 x USB 3.2 Gen 2×2 Type-C® Port 2 x USB 3.2 Gen 1 Ports 6x SATA 6 Gb/s Thunderbolt Header

ALL-ROUND PERFORMANCE

ROG Strix Z690-A Gaming Wi-Fi D4 provides up-rated power delivery and optimized cooling to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings, while Two-Way AI Noise Cancelation ensures crystal-clear in-game communication. ROG Strix Z690-A Gaming Wi-Fi D4 is armed with all the essentials required to create a gaming PC with top-tier performance.

Power Design

Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

TEAMED POWER STAGES

16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

8+8 PIN PROCOOL II POWER CONNECTOR

ASUS ProCool II connectors are built to tight specifications to ensure full contact with power supply cable wiring. A metal sheath improves heat dissipation, and low electrical impedance helps prevent hotspots and bolsters reliability.
