| Weight | 5 lbs |
|---|---|
| Dimensions | 14 × 11 × 3 in |
| Brand | ASUS |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII) * Non-ECC, un-buffered |
| PCI Express 5.0 x16 | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot |
| PCI Express 4.0 x16 | Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel Core Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22 |
| SATA RAID | * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

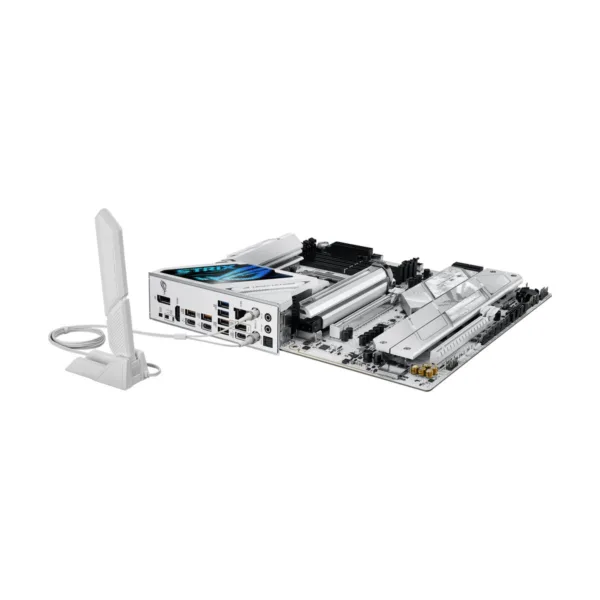

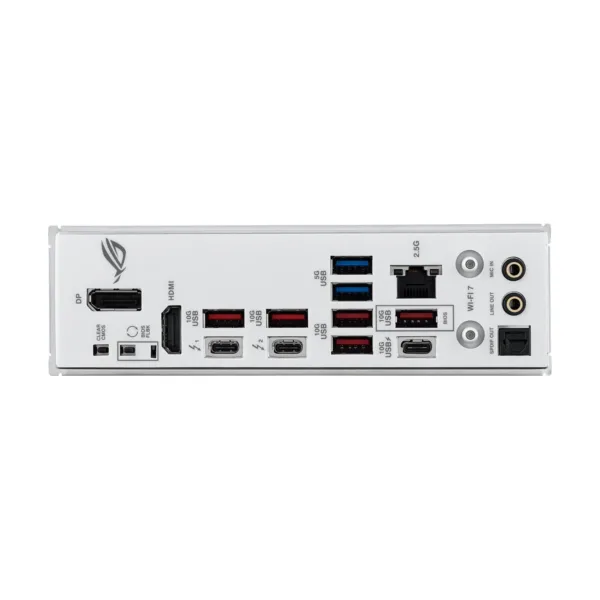

| Back I/O Ports | 2 x Thunderbolt 4 ports (2 x USB Type-C)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x St |
| BIOS Feature | 256 Mb UEFI AMI BIOS |
| Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX MyAsus USB Wattage |
| Windows 11 | Windows 11 (22H2 later) |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors |
| Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot AS |

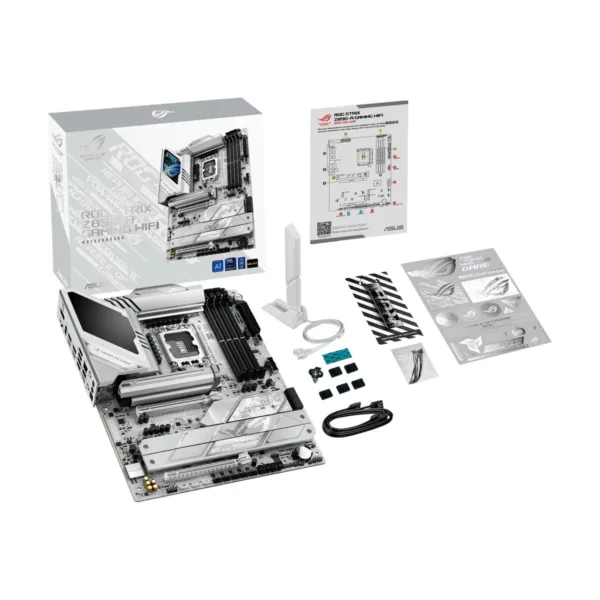

| Package Contents | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 2 x M.2 rubber packages Documentation 1 x Quick start guide |
| MPN | ROG STRIX Z890-A GAMING WIFI |
| UPC | 197105758834 |

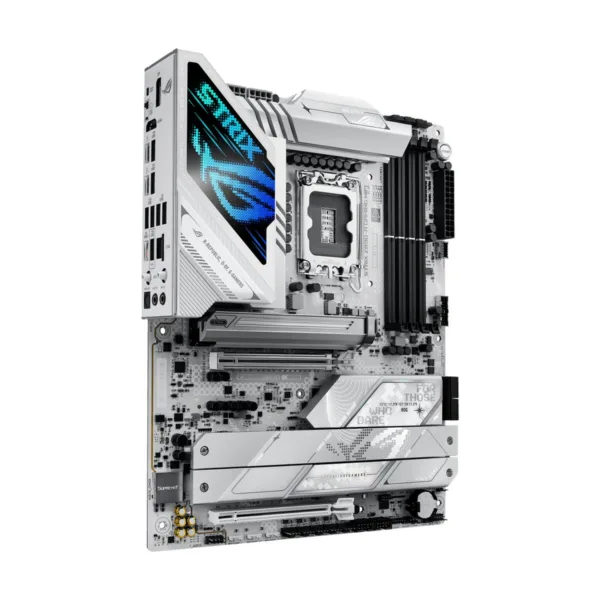

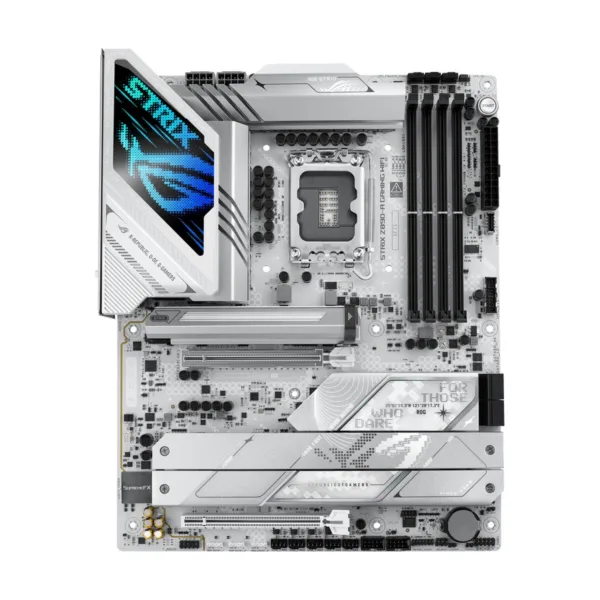

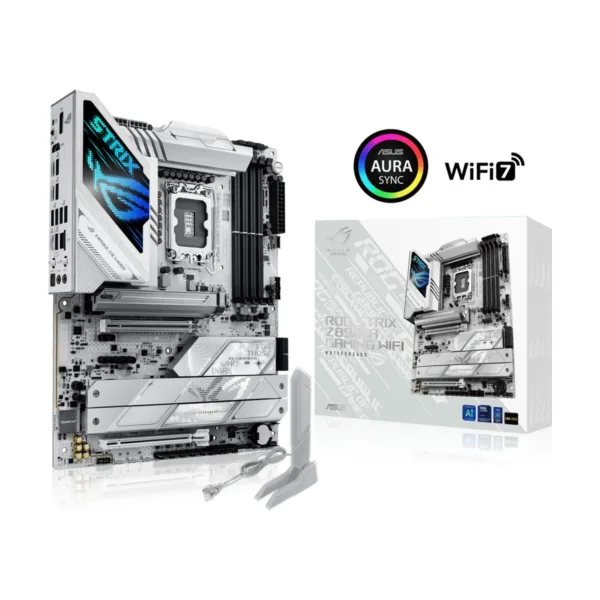

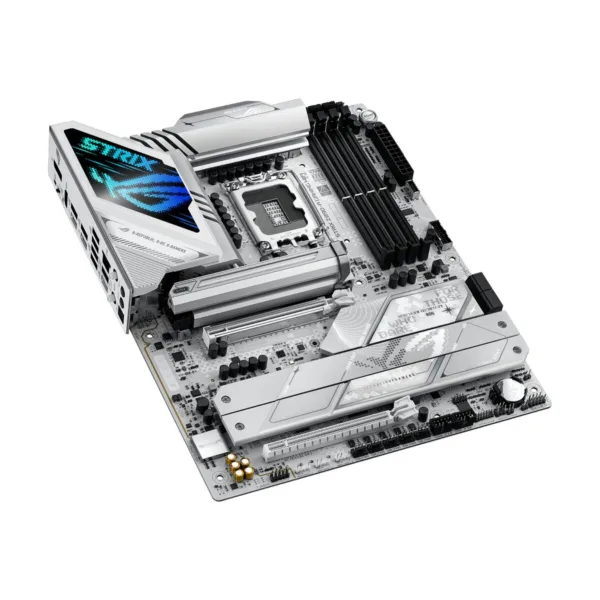

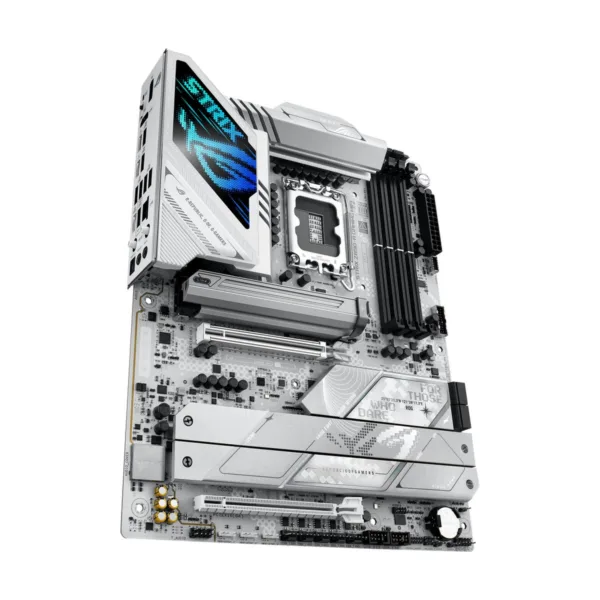

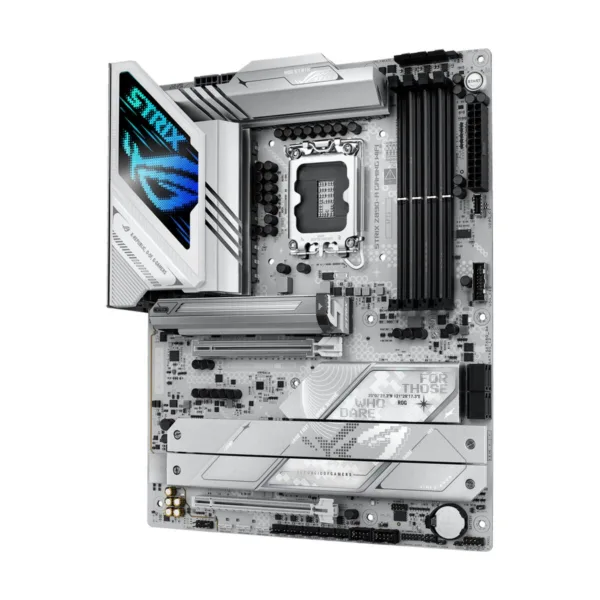

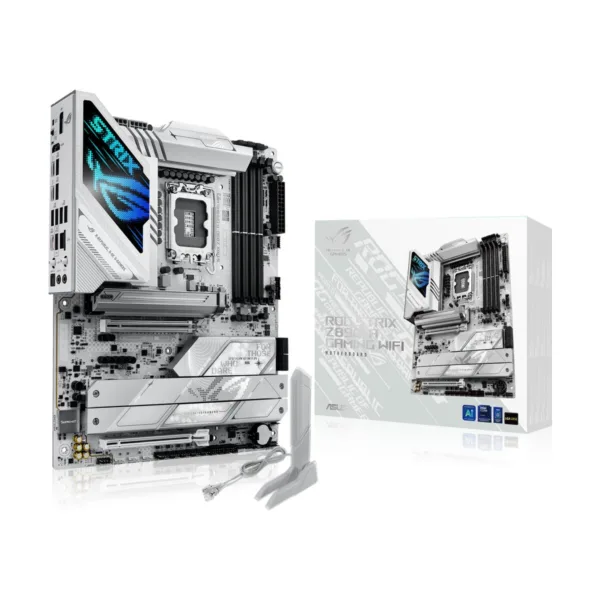

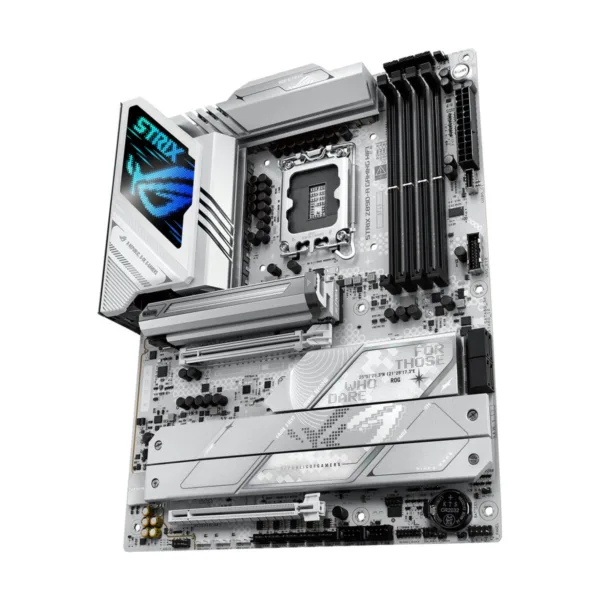

ASUS ROG STRIX Z890-A GAMING WIFI LGA 1851 ATX Motherboard, DDR5, 5x M.2, Thunderbolt 4, Wi-Fi 7
Original price was: $299.99.$239.99Current price is: $239.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
With Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ROBUST POWER SOLUTION
16 + 1 + 2 + 2 power solution rated for up to 90A per stage
DDR5
8600+ MT/s, MAX. 192GB, DIMM FIT, AEMP III, DIMM FLEX
PROCOOL II POWER CONNECTORS INTEL® SOCKET LGA1851 FOR INTEL® CORE™ ULTRA PROCESSORS (SERIES 2) EXPANSION SLOTS 1 x PCIe 5.0 x16 SafeSlot [CPU] 1 x PCIe 4.0 x16 Slot (x4) [Chipset]
16(90A)+1(90A)+2(90A)+2(80A) POWER STAGES DDR5 8600+ MT/S (OC) 4 x DIMM Dual Channel 5 X M.2 SLOTS 1 x M.2 22110 (PCIe® 5.0 x4) 1 x M.2 22110 (PCIe® 4.0 x4) 2 x M.2 2280 (PCIe® 5.0 x4) 1 x M.2 2280 (PCIe® 4.0 x4 & SATA)
SUPREMEFX ALC4080 CODEC + SAVITECH SV3H712 AMP Impedance sense 120 dB SNR stereo playback output 110 dB SNR recording input SupremeFX shielding DOLBY ATMOS®
