| Weight | 4.2 lbs |
|---|---|
| Dimensions | 14 × 11 × 3 in |
| Brand | ASUS |
| Part Number | 90MB1J30-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B850 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Up to 8000+MT/s (OC) |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** *** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. |
| PCI Express x1 | 2 x PCIe 4.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mod |
| SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. * *RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. |
| Audio Chipset | Realtek ALC1220P |
| Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retaskin |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

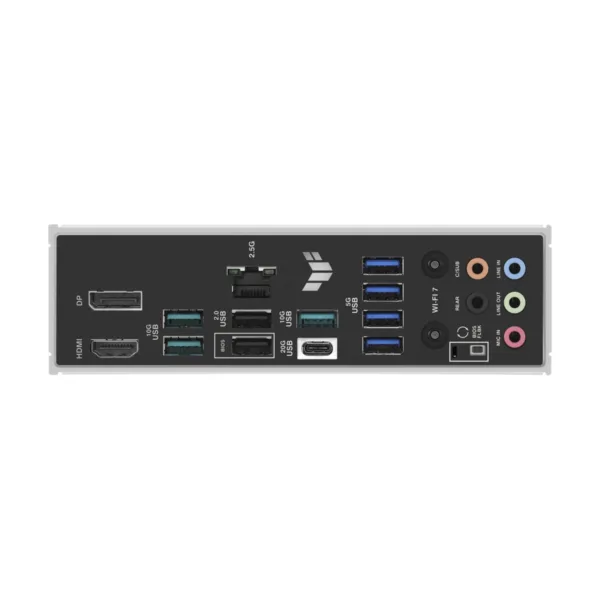

| Back I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Onboard USB | 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree |
| Windows 11 | Supported |
| Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], V |

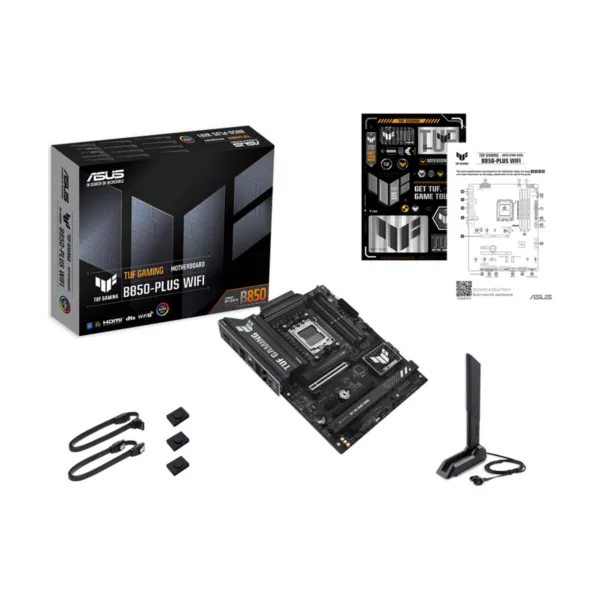

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages Documentation 1 x Quick start guide |
| MPN | TUF GAMING B850-PLUS WIFI |
| UPC | 197105781603 |

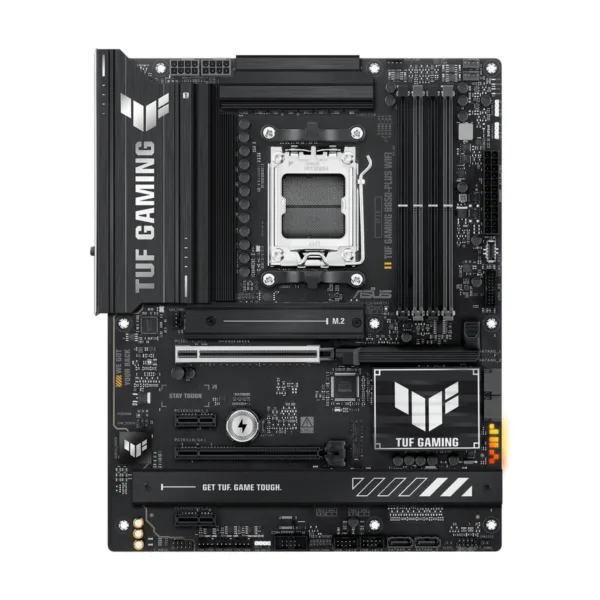

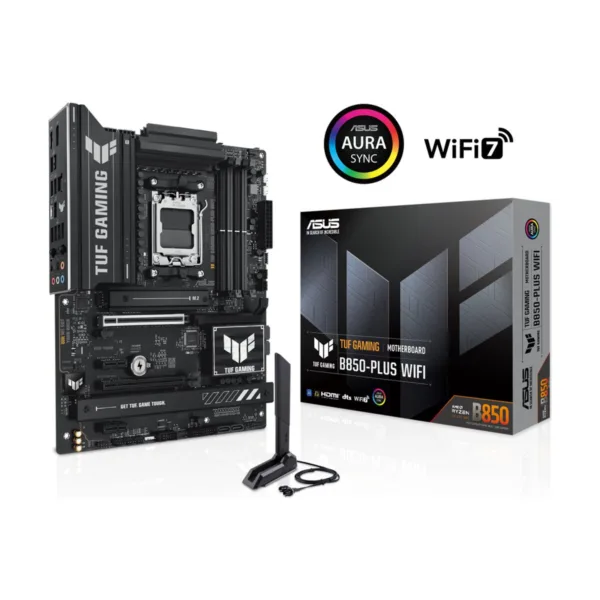

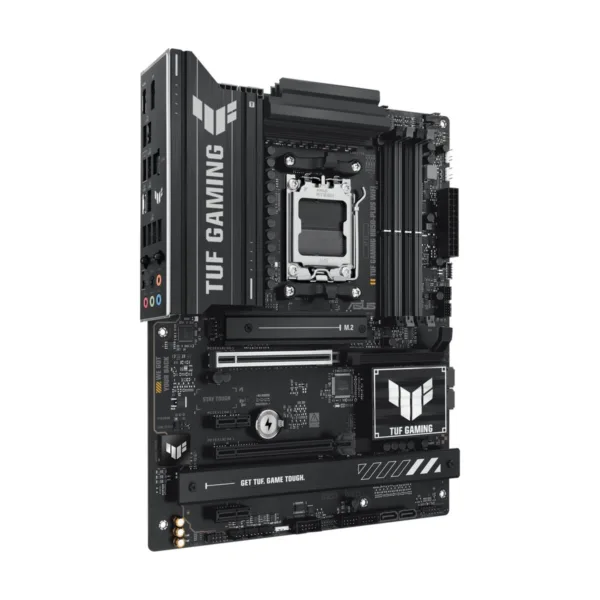

ASUS TUF GAMING B850-PLUS WIFI AM5
Original price was: $239.99.$191.99Current price is: $191.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
ASUS TUF GAMING B850-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
14+2+1 (80A)
Premium power stages with enlarged VRM heatsinks LEARN MORE
8000+ MT/s, AEMP
Effortlessly apply to unleash performance LEARN MORE
PCIe® 5.0 for Graphics Card
Robust to handle new data-heavy tasks LEARN MORE
Empowering Connectivity
Rear USB 20 Gbps Type-C® & front USB 10 Gbps Type-C® LEARN MORE
Ultrafast Networking
Wi-Fi 7 with ASUS Wi-Fi Q-Antenna LEARN MORE
DIY Friendly
PCIe® Slot, Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED & BIOS Flashback™ Button LEARN MORE
Pre-mounted I/O Shield
For safeguarding ports and enhancing aesthetics LEARN MORE
AM5 Socket for AMD Ryzen™ Desktop Processors Expansion Slots 1 x PCIe® 5.0 x16 SafeSlot 1 x PCIe® 4.0 x16 Slot (max @x4) 2 x PCIe® 4.0 x1 14 (80A) + 2 (80A) + 1 (80A) Power Stages
4 x DIMM DDR5 Dual Channel AEMP 3 x M.2 Slots 1 x M.2 2280 PCIe® 5.0 x4 1 x M.2 2242/2260/2280/22110 PCIe® 4.0 x4 1 x M.2 2280 PCIe® 4.0 x4
CPU / CPU OPT Fan Headers & AIO Pump Header Chipset Heatsink 4 x Chassis Fan Headers
