$249.99Original price was: $249.99.$199.99Current price is: $199.99.
Save 20%Sale ends Dec 23
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard, American Express and Discover.

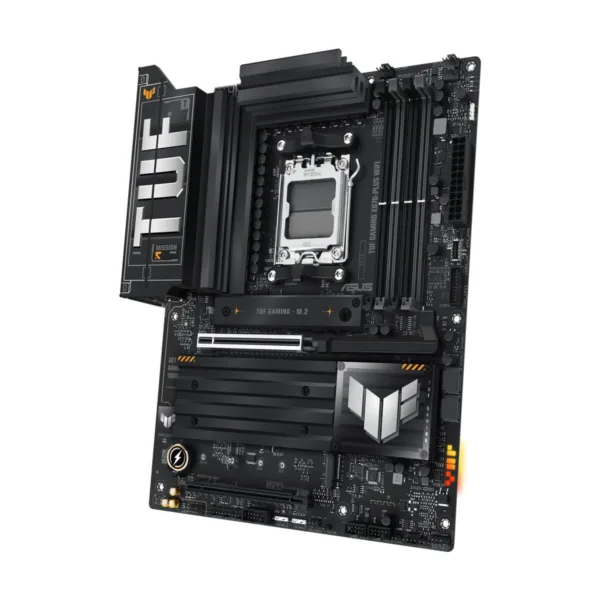

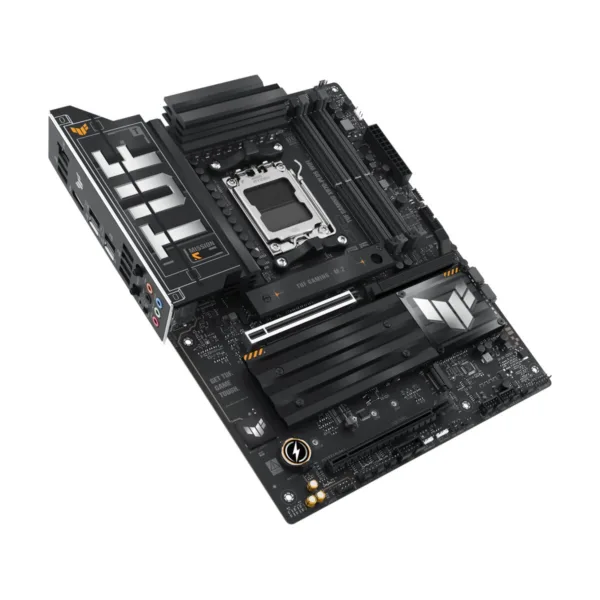

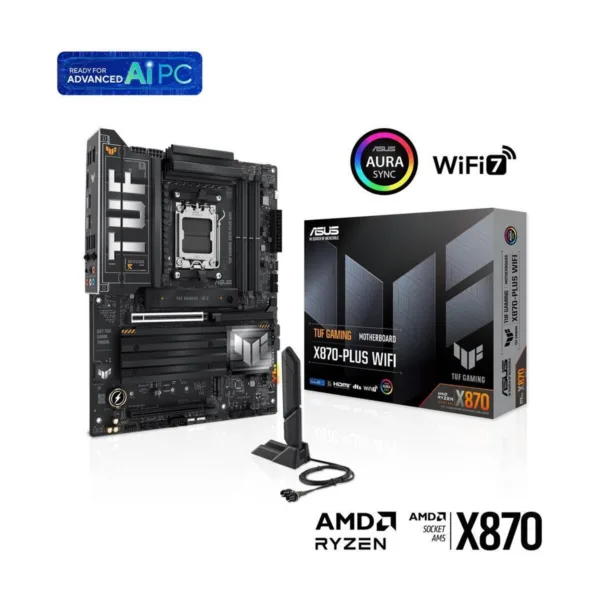

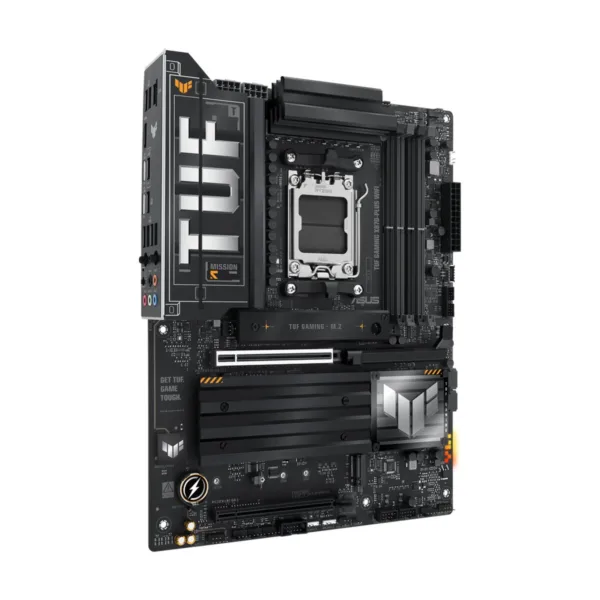

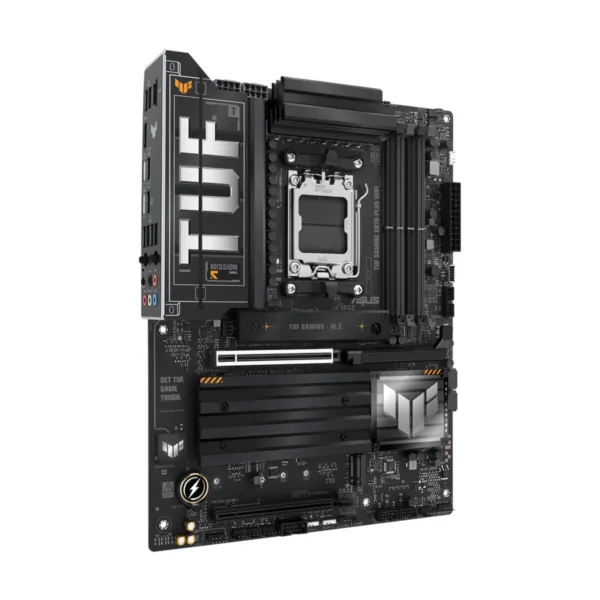

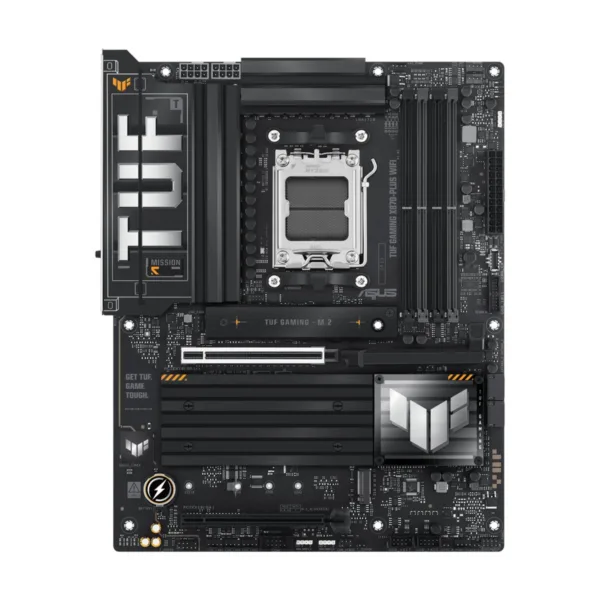

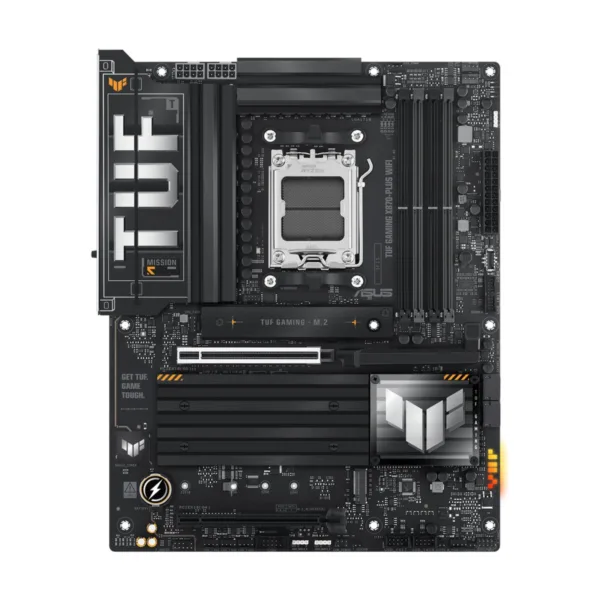

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
AM5 Socket for AMD Ryzen™ Desktop Processors Expansion Slots 1 x PCIe® 5.0 x16 SafeSlot 1 x PCIe® 4.0 x16 Slot (max @x4) 16(80 A)+2(80 A)+1(80 A) Power Stages
4 x DIMM DDR5 Dual AEMP 4 x M.2 Slots 2 x M.2 2280 PCIe® 5.0 x4 1 x M.2 2280 PCIe® 4.0 x4 1 x M.2 2242/2260/2280/ 22110 PCIe® 4.0 x4
VRM Heatsinks Two M.2 Heatsinks for Three M.2 Slots CPU / CPU OPT Fan Headers & AIO Pump Header
2 x USB 10 Gbps Realtek 2.5 Gb Ethernet HDMI™ 1 x USB4® 40 Gbps Type-C® 1 x USB 2.0 1 x USB4® 40 Gbps Type-C® 1 x USB 10 Gbps 4 x USB 5 Gbps

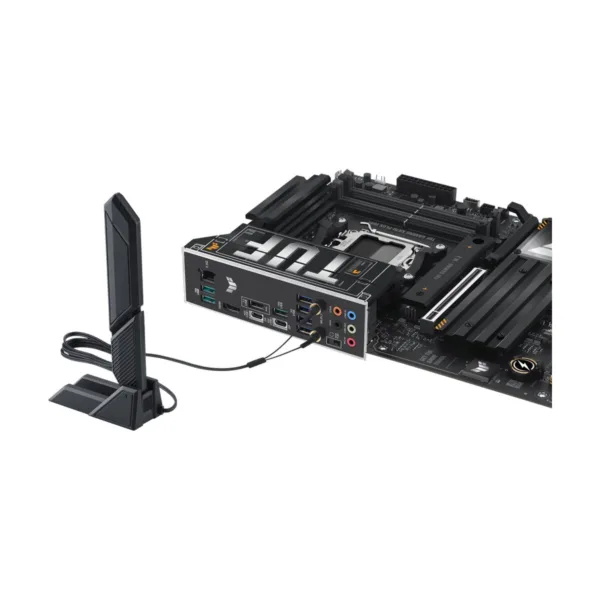

Wi-Fi 7 BIOS FlashBack™ Button 5 x Audio Jacks 1 x USB 20 Gbps Connector (Supports USB Type-C® with up to 30 W PD Fast-Charge) 1 x USB 5 Gbps Header 2 x Front USB 2.0 Headers
Intelligent
Complete AI Solution ASUS AI Solutions – including AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart overclocking, efficient cooling and new levels of ultrafast connectivity.
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16
AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)
2 x SATA 6Gb/s
M.2
AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot
SATA RAID
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio Chipset
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retaskin
Audio Channels
7.1 Channels

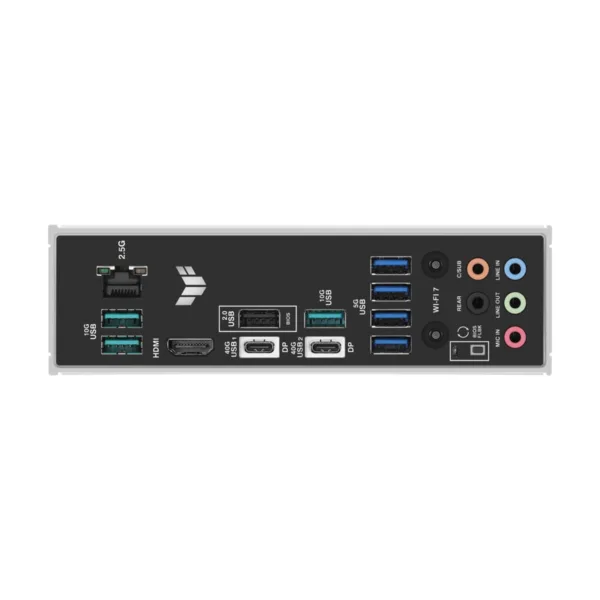

Back I/O Ports

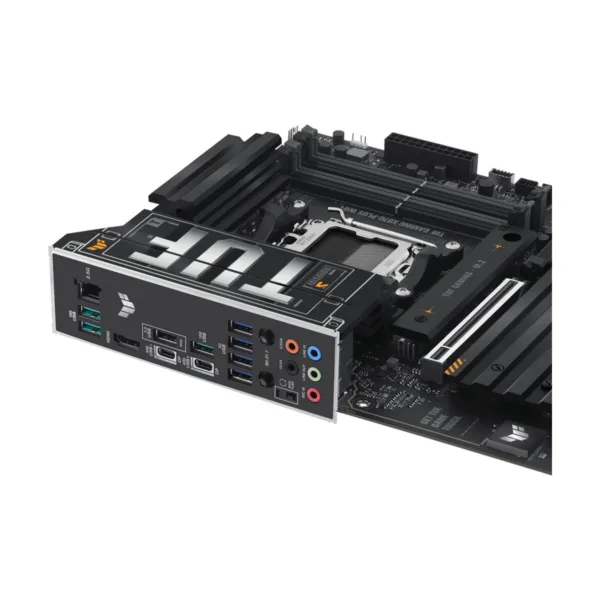

2 x USB4 (40Gbps) (2 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
Onboard USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Pa
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors
BIOS Feature
256 Mb Flash ROM, UEFI AMI BIOS
Windows 11
Supported
Features
ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with SPS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA

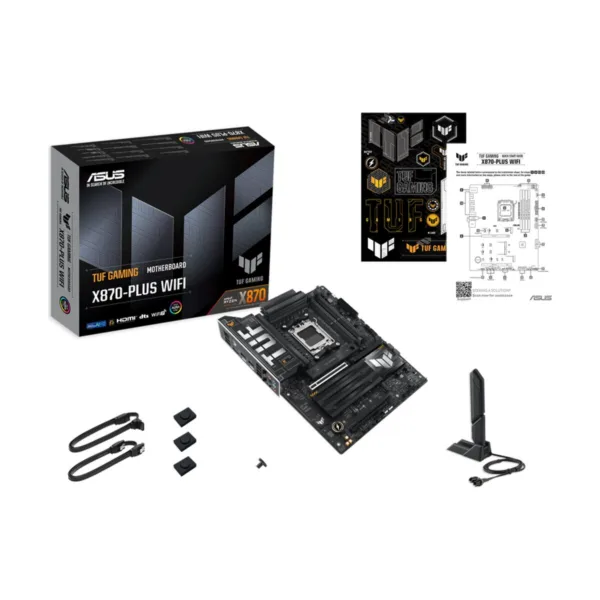

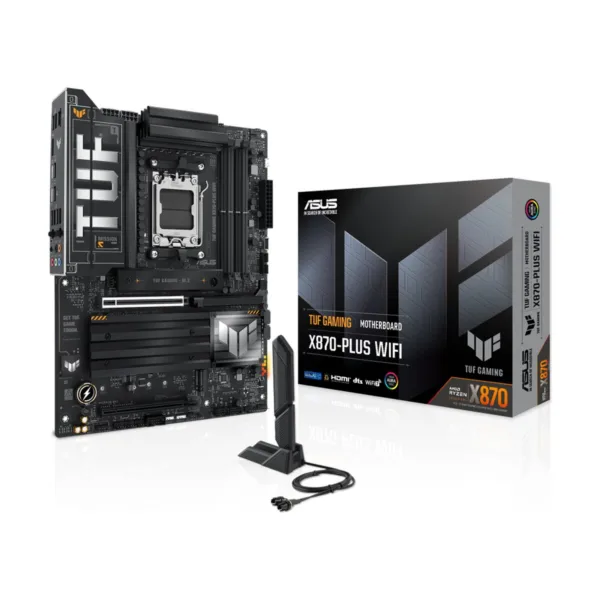

Package Contents
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x TUF certification card 1 x Quick start guide
