| Weight | 4.35 lbs |
|---|---|
| Dimensions | 14 × 10.7 × 2.75 in |
| Brand | ASUS |
| Series | TUF |
| Part Number | 90MB1D80-M0AAY0 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to http://www.asus.com for CPU support list. ** Intel® Turbo Boos |
| Chipset | Intel Z790 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and num |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the S |
| Memory Performance Profile | Intel XMP 3.0 |
| PCI Express 5.0 x16 | Intel® 14th, 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| PCI Express x1 | 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported periphe |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel® 14th, 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| SATA RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Audio Channels | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Max LAN Speed | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Wireless LAN | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |

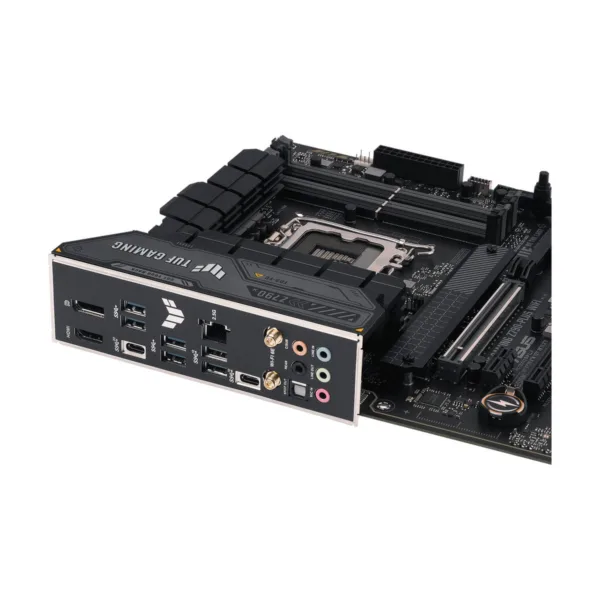

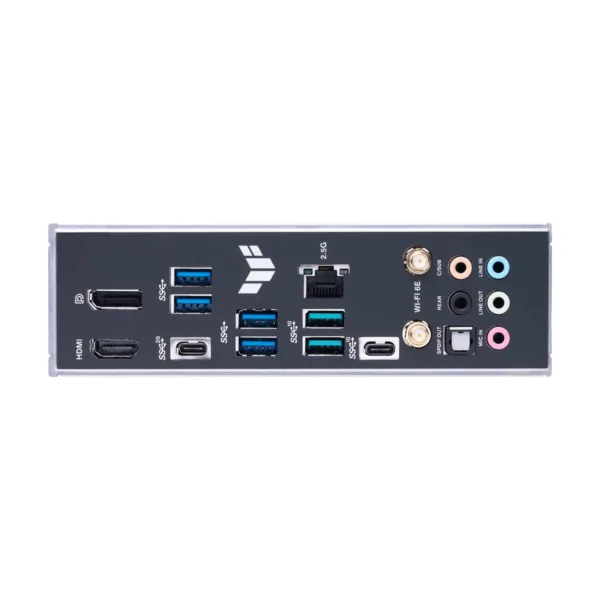

| Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x US |
| Windows 11 | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX |
| Dimensions (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [y |
| MPN | TUF GAMING Z790-PLUS WIFI 6E |
| UPC | 197105014503 |

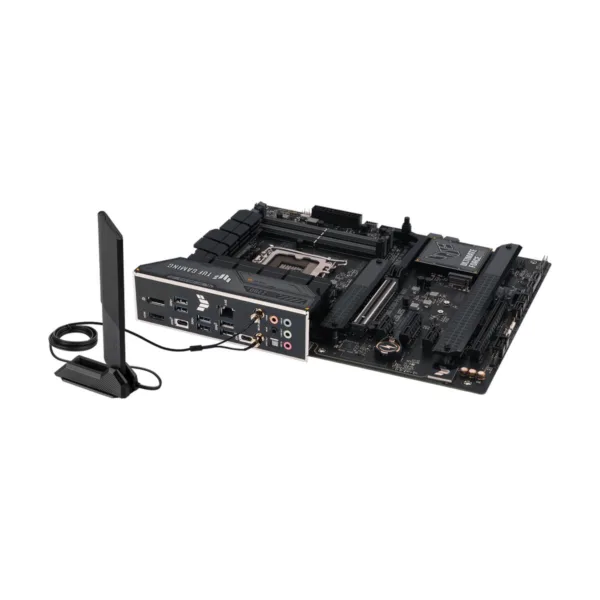

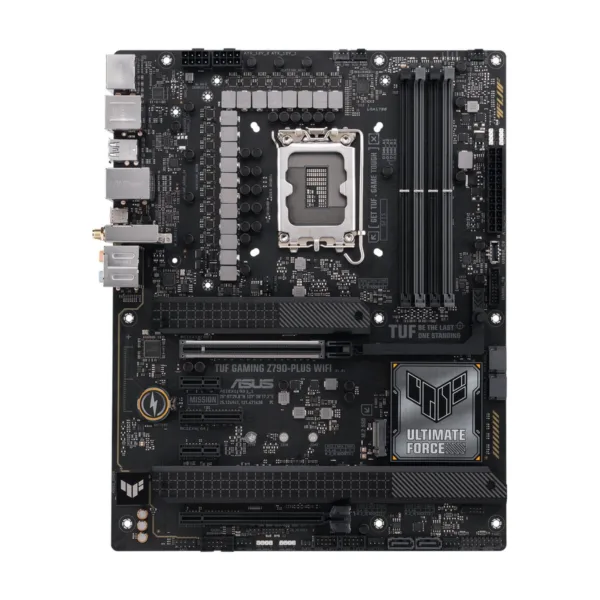

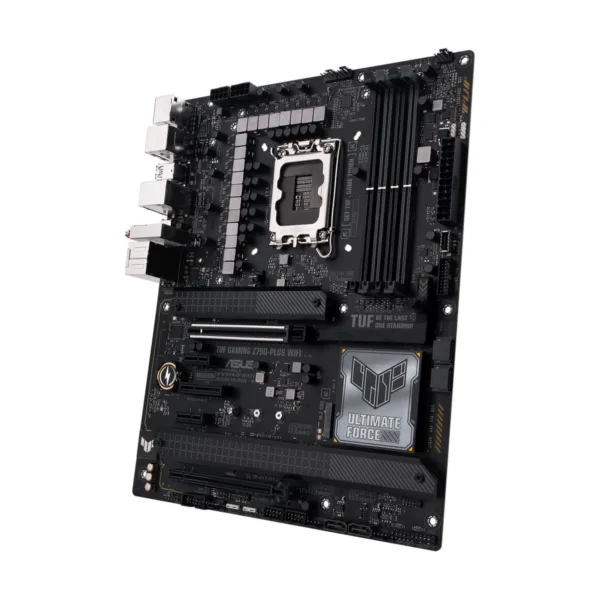

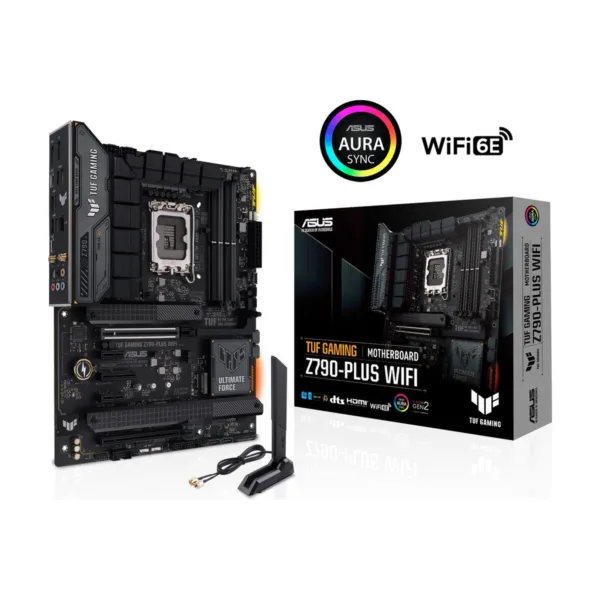

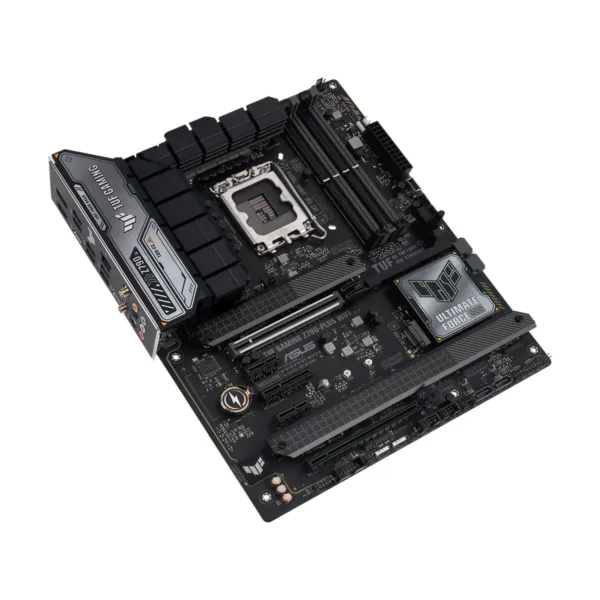

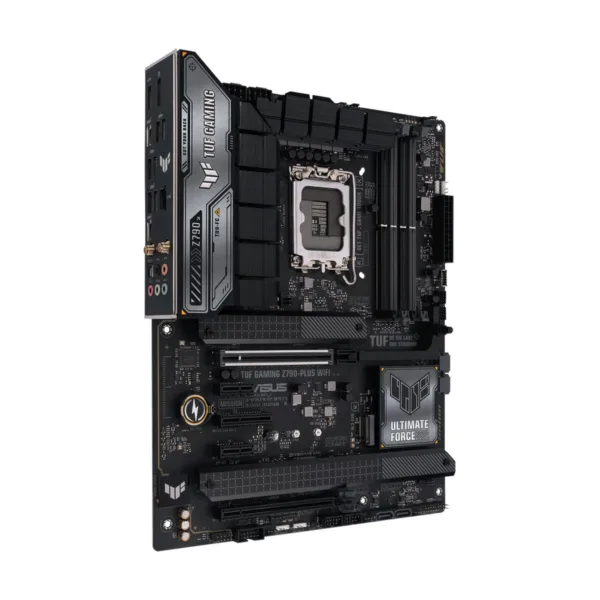

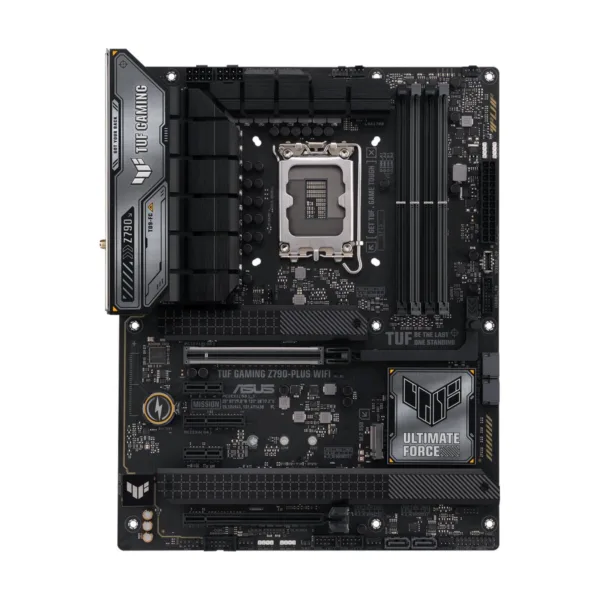

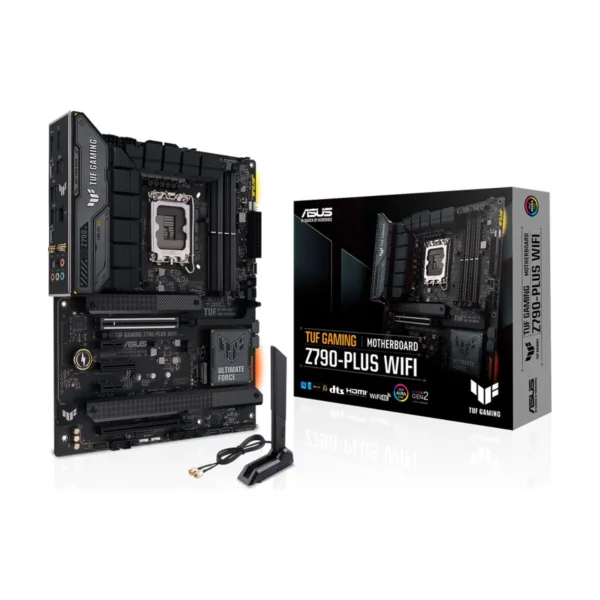

ASUS TUF Gaming Z790-Plus WiFi LGA 1700 ATX Motherboard, DDR5, 4x M.2, PCIe 5.0, 2.5Gb LAN
Original price was: $249.99.$187.49Current price is: $187.49.
Save 25%Sale ends Dec 23BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information Intel LGA 1700 socket: Ready for 14th & 13th & 12th Gen Intel Core processors, support PCIe 5.0 and ou…
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
