| Weight | 2.5 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Brand | MSI |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: – 1DPC 1R Max speed up to 8600+ MT/s – 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) *PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices M.2_4 Source (From Chipset) supports up |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1-Channel USB High Performance Audio |
| LAN Chipset | Intel Killer E5000B 5G LAN |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Intel Killer BE1750x Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |

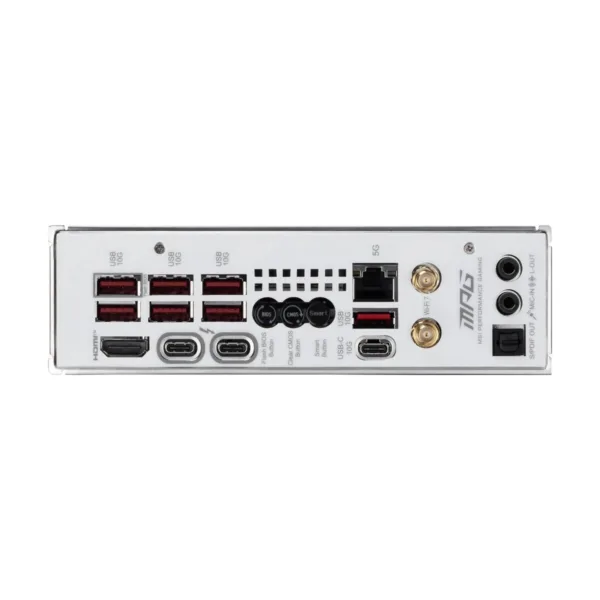

| Back I/O Ports | 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Smart Button / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x Thunderbolt 4 / 7 x USB 3.2 Gen 2 Type-A |
| Onboard USB | 2 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports |
| Other Connectors | 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 1 x System Fan 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Thermal Sensor connectors(T_SEN) 1 x Addressable V2 RGB LED connector (JARGB_V2) 1 x TPM pin header(Support TPM 2.0) |
| Windows 11 | Supported |
| Form Factor | Mini ITX |
| Power Pin | 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) |
| MPN | MPG Z890I EDGE TI WIFI |
| UPC | 824142388099 |

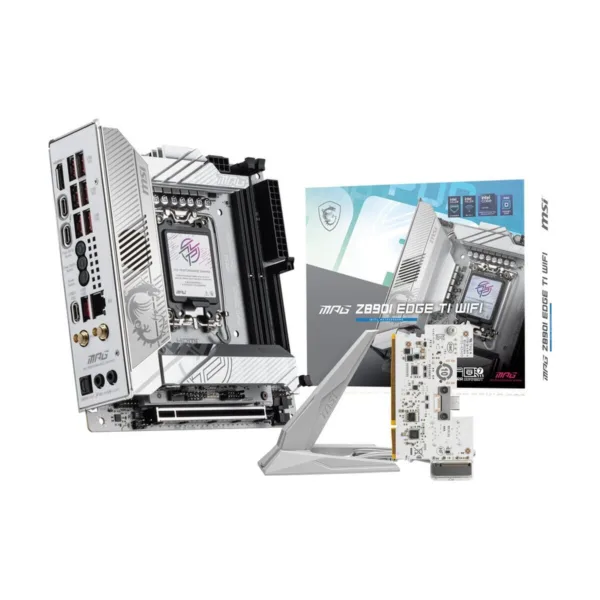

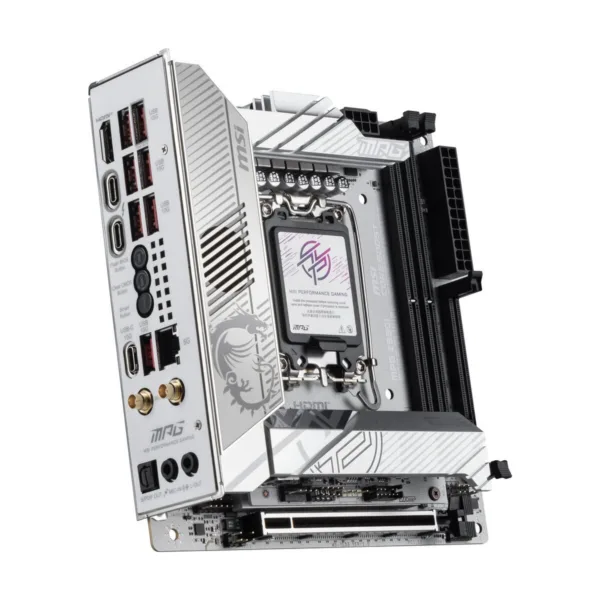

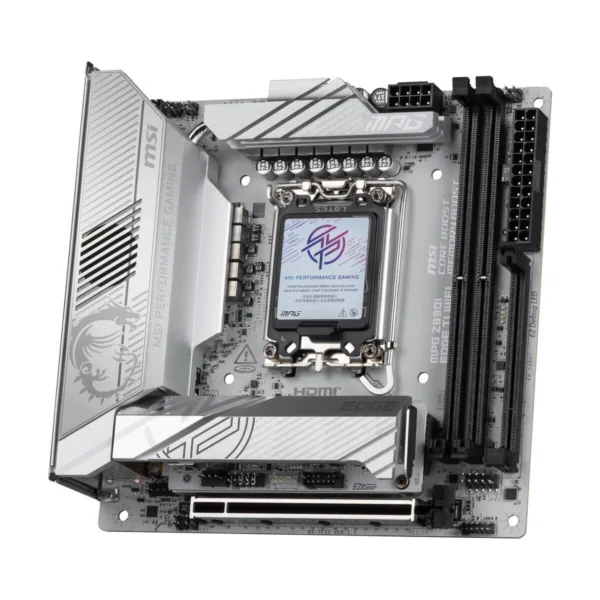

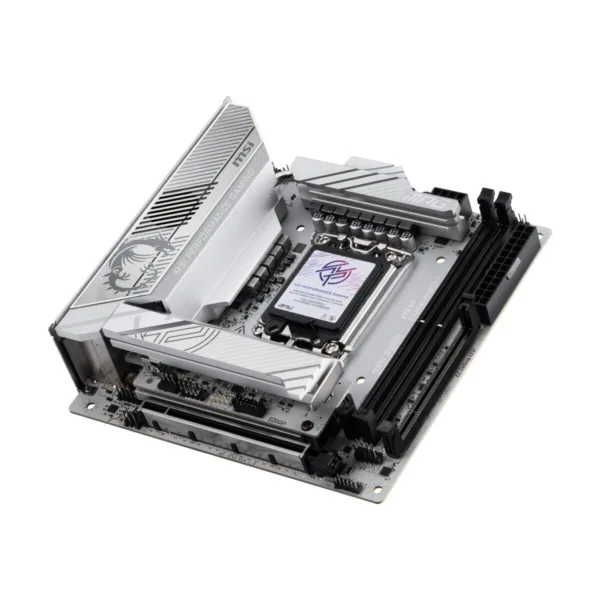

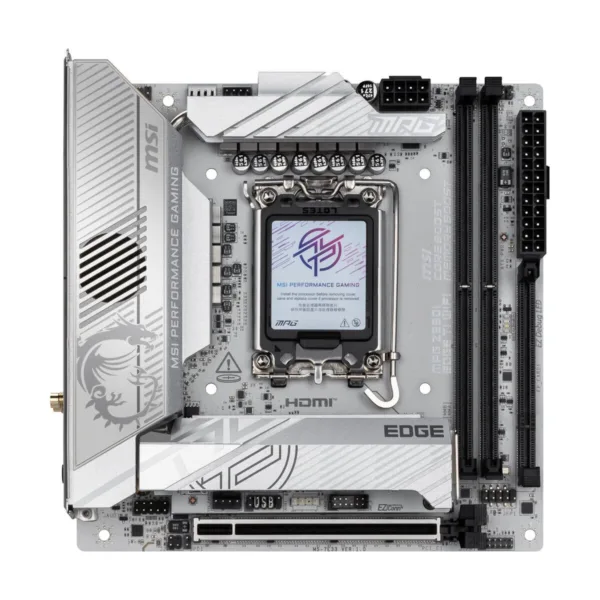

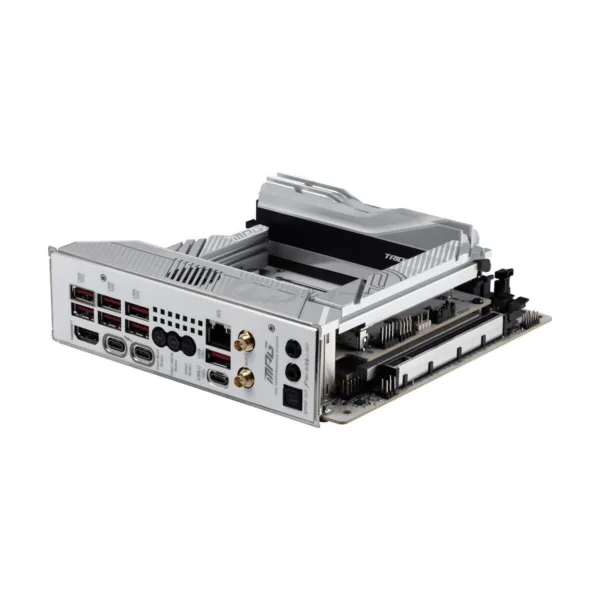

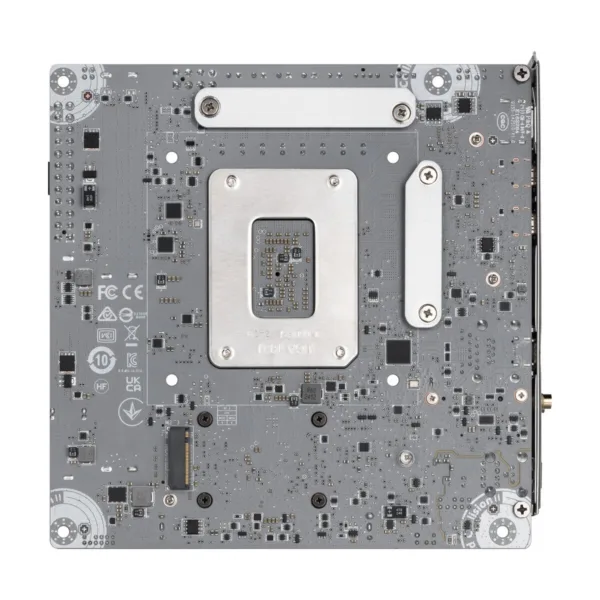

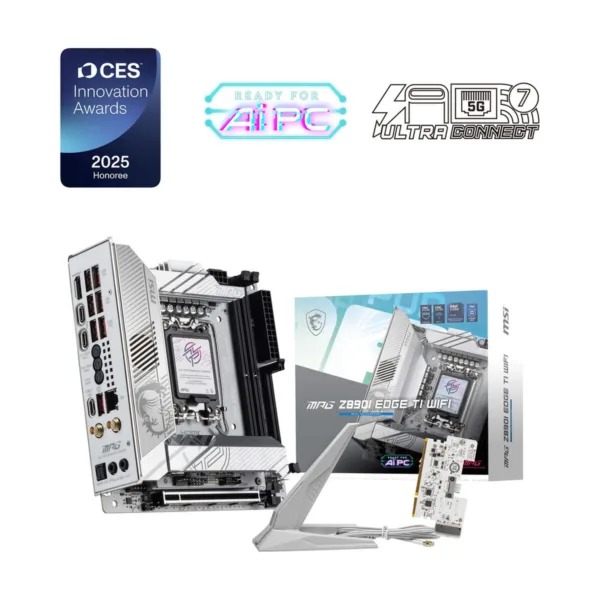

MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard, White, DDR5, M.2 Gen5, Wi-Fi 7
Original price was: $299.99.$239.99Current price is: $239.99.
Save 20%Sale ends Dec 23Premium Thermal Design: Heavy plated MOSFET heatsink with heat-pipe / high quality. EZ M.2 Shield Forzr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
Perform in Style
The MPG Z890I EDGE TI WIFI is a gaming oriented Mini-ITX motherboard with a direct 10 phases power design, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports Intel Core Ultra Processors (Series 2)
The MPG Z890I EDGE TI WIFI motherboard supports Intel Core Ultra Processors (Series 2). Form Factor: Mini-ITX Socket Type: LGA 1851 Chipset: Intel Z890
Ultra Power – Direct 10-phase power design with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG Z890I EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC Direct 10-phase power design (110A / SPS) 1-Phase SA Power 1-Phase GT Power 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation. Frozr Heatsink: The fan design enhances cooling efficiency, resulting in improved performance. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
2 x DDR5 Dual Channel (8600+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. * 1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*) * MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG Z890I EDGE TI WIFI motherboard features MSI's M.2 slots: 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II) 3 x Gen4 x4 64Gbps slots (1 via 5-in-1 XPANDER card, supports single sided SSD)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening. EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement. Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off withou
Ultra Connect
5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience. Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
