| Weight | 4.2 lbs |
|---|---|
| Dimensions | 13.5 × 10.75 × 3 in |
| Brand | MSI |
| Series | PRO |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series |
| Chipset | AMD X870E |
| South Bridge | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 0 x PCI Express 3.0 x16 |
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 3 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4) |
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Depends on CPU integrated graphics |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126VB |
| Max LAN Speed | 5Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac / ax / be |
| Bluetooth | Yes |

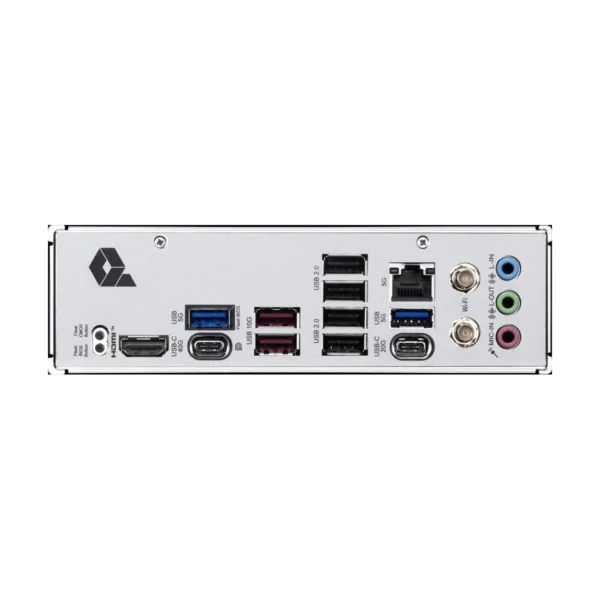

| Back I/O Ports | 1 x Clear CMOS Button, 1 x HDMI, 1 x USB 40Gbps Type-C, 1 x USB 20Gbps Type-C, 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0, 1 x 5G LAN, 1 x Wi-Fi / Bluetooth, 1 x Flash BIOS Button, Audio connectors |
| Video Ports | HDMI + Display Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 3 x USB 3.1 |
| USB 3.0 | 6 x USB 3.0 |
| USB 1.1/2.0 | 10 x USB 2.0 |
| USB Type-C | 1 x USB 10Gbps Type-C port, 1 x USB 20Gbps Type-C port, 1 x USB 40Gbps Type-C port |
| Audio Ports | 5 Ports |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2×2 + 4 x USB 3.2 + 6 x USB 2.0 |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 304.8mm x 243.84mm |
| Power Pin | 24 Pin |
| Windows 11 | Supported |
| MPN | PRO X870E-S EVO WIFI |
| UPC | 824142450499 |

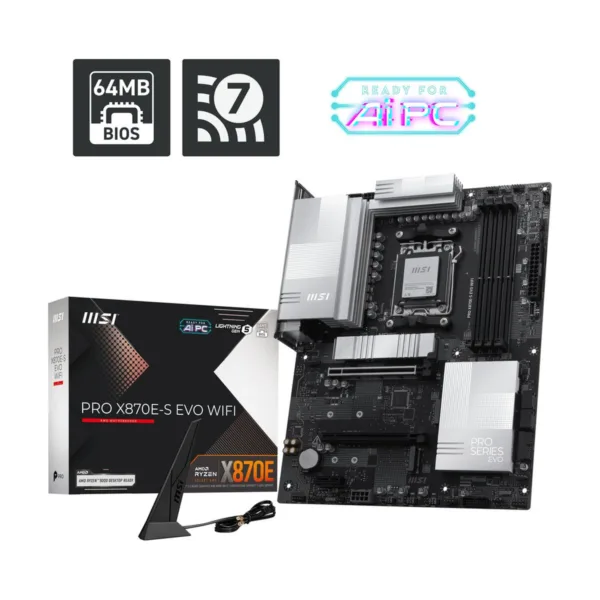

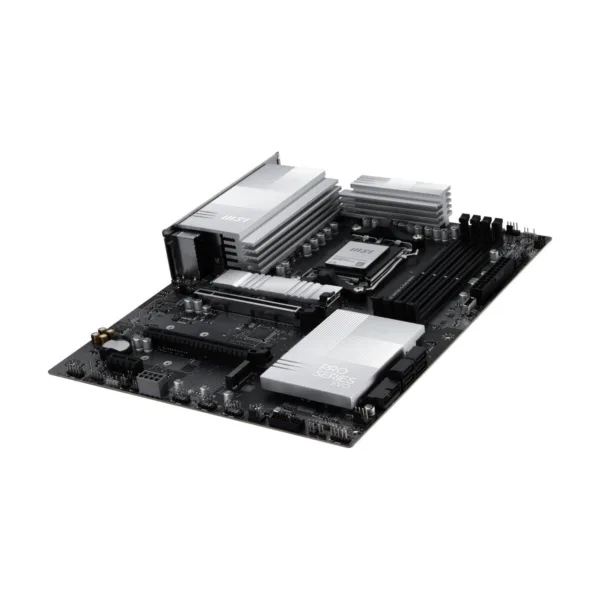

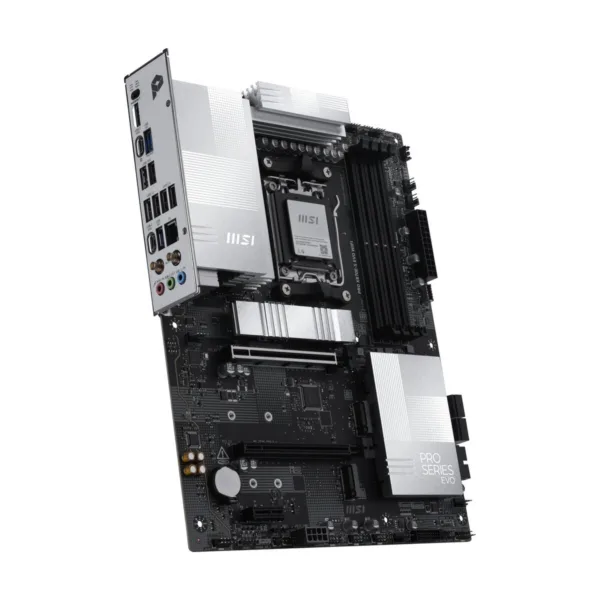

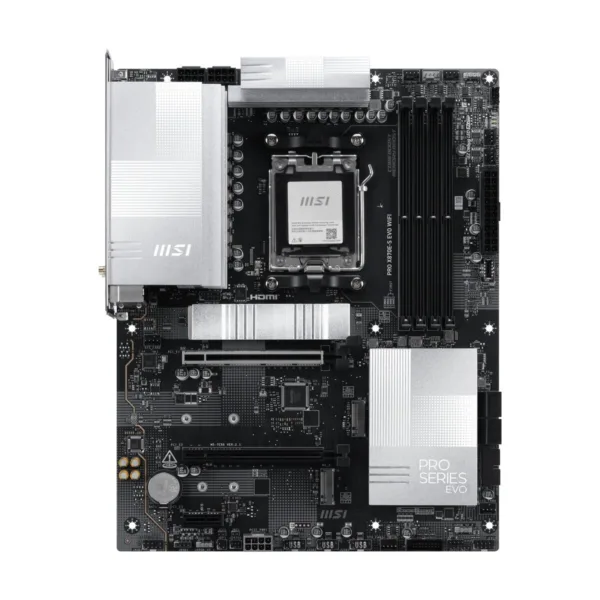

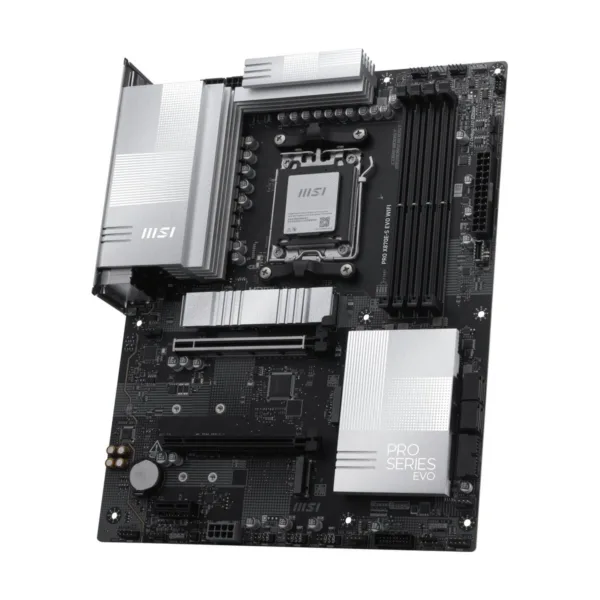

MSI PRO X870E-S EVO WIFI ATX AM5 Motherboard, USB 4.0, 4x SATA 6Gb/s, AMD Wi-Fi 7, USB 4.0
Original price was: $219.99.$175.99Current price is: $175.99.
Save 20%Sale ends Dec 2364MB BIOS: A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
